F175H3 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

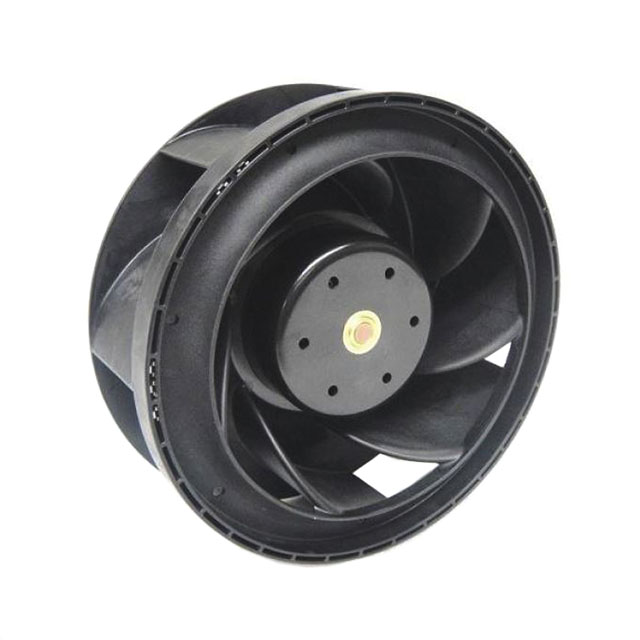

FAN BLOWER, F175H SERIES, MOTORIZED IMPELLER, 24 VDC, DC, 175 MM, 69 MM, 541 CFM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Fan Type | Features | Weight | Weight | Width [y] | Termination | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Noise | Size / Dimension | Size / Dimension [diameter] | Static Pressure | Static Pressure | Air Flow | Air Flow | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 18 VDC | 30 V | Plastic | 4.7 A | 70000 Hrs | Motorized Impellers | PWM Control Speed Sensor (Tach) | 907.2 g | 2 lbs | 69 mm | 4 Wire Leads | Ball | 70 °C | -30 ░C | -30 °C | 70 °C | 113 W | 74 dB(A) | Round | 175 mm | 870 Pa | 3.49 in H2O | 15.15 m³/min | 541 CFM | 24 VDC |
