1EDN8550 Series
Manufacturer: INFINEON
Beta
⌘K
☆ 1-CHANNEL NON-ISOLATED GATE-DRIVER IC FAMILY WITH TRULY DIFFERENTIAL INPUTS ☆ EXCEPTIONAL POWER DENSITY IN BOOST-PFC WITH KELVIN-SOURCE MOSFETS
| Part | Gate Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Input Type | High Side Voltage - Max (Bootstrap) [Max] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Channel Type | Driven Configuration | Package / Case | Number of Drivers | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

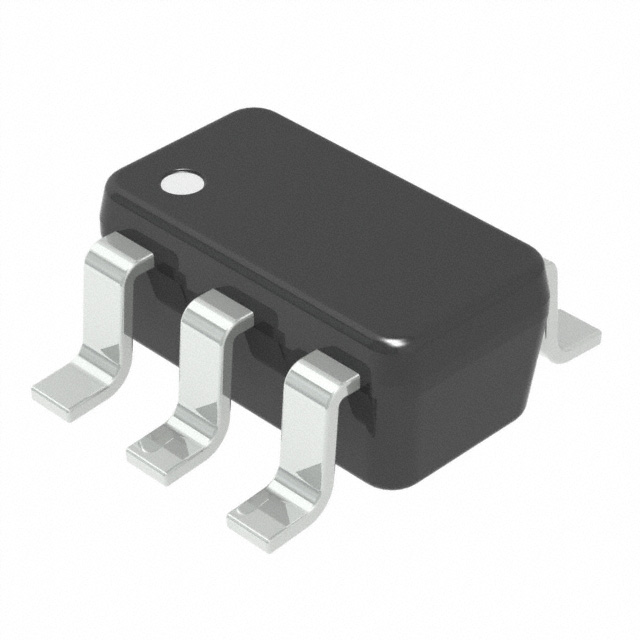

 INFINEON | MOSFET (N-Channel P-Channel) N-Channel MOSFET P-Channel MOSFET | -40 °C | 150 °C | Surface Mount | Non-Inverting | 84 V | 6.5 ns | 4.5 ns | 8 A | 4 A | Single | High-Side | SOT-23-6 | 1 | PG-SOT23-6 | 20 V | 4.5 V |
