C0741 Series

Catalog

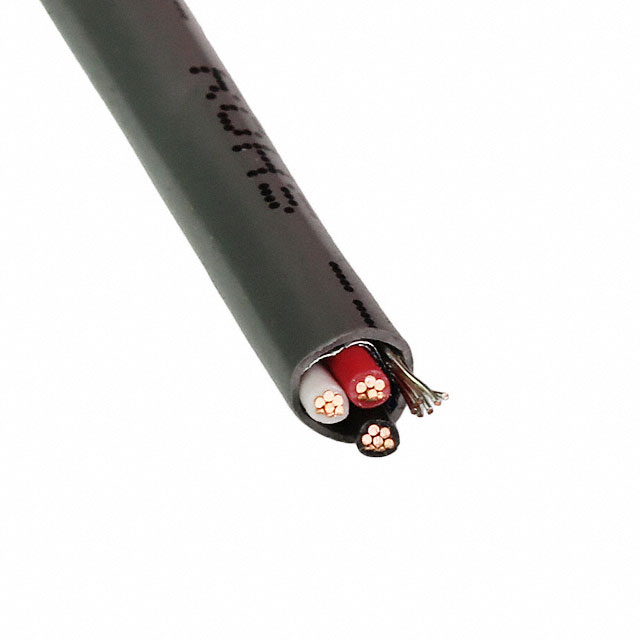

CABLE 3COND 24AWG GRAY SHLD

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Voltage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Usage	Number of Conductors	Features	Conductor Material	Shield Type	Shield Coverage	Shield Material	Length	Length	Length [x]	Length [x]
Prysmian Group C0741A.46.10	24 AWG	4.17 mm	0.164 in	Gray	300 VDC	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	0.813 mm	0.032 in	Multi-Conductor	7	32 AWG	Poly-Vinyl Chloride (PVC)	Computer	3	Drain Wire	Copper Tinned	Foil
Prysmian Group C0741A.18.10	24 AWG	4.17 mm	0.164 in	Gray	300 VDC	Poly-Vinyl Chloride (PVC)	-20 ░C	80 °C 105 ░C	0.813 mm	0.032 in	Multi-Conductor	7	32 AWG	Poly-Vinyl Chloride (PVC)	Computer	3	Drain Wire	Copper Tinned	Foil	100 %	Flexfoil®	152.4 m	500 ft
Prysmian Group C0741A.41.10	24 AWG	4.17 mm	0.164 in	Gray	300 VDC	Poly-Vinyl Chloride (PVC)	-20 ░C	80 °C	0.813 mm	0.032 in	Multi-Conductor	7	32 AWG	Poly-Vinyl Chloride (PVC)	Computer	3	Drain Wire	Copper Tinned	Foil	100 %	Flexfoil®	304.8 m	1000 ft	100 ft	30.5 m
Prysmian Group C0741A.41.10	24 AWG	4.17 mm	0.164 in	Gray	300 VDC	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	0.813 mm	0.032 in	Multi-Conductor	7	32 AWG	Poly-Vinyl Chloride (PVC)	Computer	3	Drain Wire	Copper Tinned	Foil			15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	100 ft	30.5 m
Prysmian Group C0741A.46.10	24 AWG	4.17 mm	0.164 in	Gray	300 VDC	Poly-Vinyl Chloride (PVC)	-20 ░C	80 °C	0.813 mm	0.032 in	Multi-Conductor	7	32 AWG	Poly-Vinyl Chloride (PVC)	Computer	3	Drain Wire	Copper Tinned	Foil	100 %	Flexfoil®
