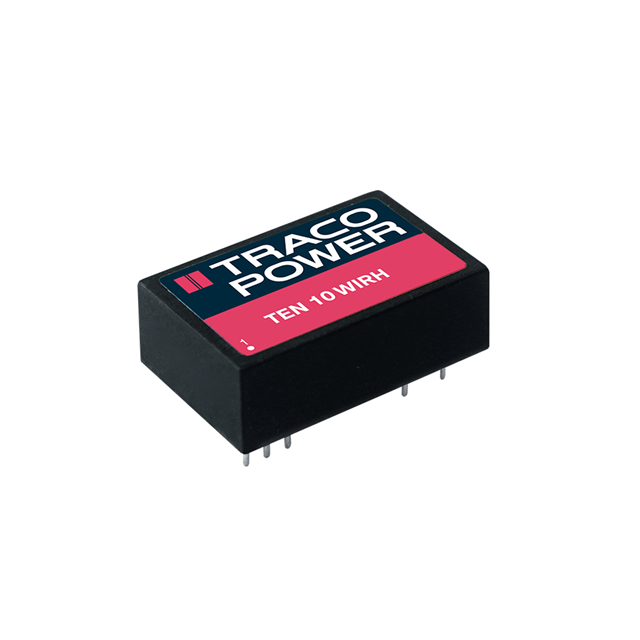

TEN 10WIRH Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 8.3W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT PLASTIC CASE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Max) [Max] | Efficiency | Voltage - Isolation | Applications | Mounting Type | Voltage - Output 1 | Standard Number | Number of Outputs | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Features | Power (Watts) | Package / Case | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 85 °C | -40 C | Isolated Module | 160 V | 83 % | 3000 V | ITE (Commercial) Railway | Through Hole | 3.3 V | 62368-1 | 1 | 2.5 A | 0.42 " | 0.8 " | 10.7 mm | 1.25 in | 31.8 mm | 20.3 mm | CB cURus | Adjustable Output Remote On/Off | 8.25 W | 24-DIP Module 9 Leads | 36 V |
