MCP73113 Series

6.5V OVP Single Cell Li-Ion/Li-Polymer Battery Charge Management Controller

Catalog

6.5V OVP Single Cell Li-Ion/Li-Polymer Battery Charge Management Controller

Part	Number of Cells	Charge Current - Max [Max]	Voltage - Supply (Max) [Max]	Battery Chemistry	Package / Case	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Battery Pack Voltage	Current - Charging
Microchip Technology MCP73113T-16SI/MF	1	1.1 A	6.5 V	Lithium Ion/Polymer	10-VFDFN Exposed Pad	Surface Mount	10-DFN (3x3)	85 °C	-40 °C	4.1 V	Constant - Programmable

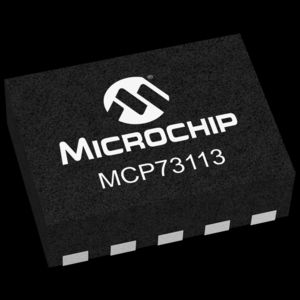

Microchip Technology MCP73113-06SI/MF	1	1.1 A	6.5 V	Lithium Ion/Polymer	10-VFDFN Exposed Pad	Surface Mount	10-DFN (3x3)	85 °C	-40 °C	4.2 V	Constant - Programmable
Microchip Technology MCP73113-16SI/MF	1	1.1 A	6.5 V	Lithium Ion/Polymer	10-VFDFN Exposed Pad	Surface Mount	10-DFN (3x3)	85 °C	-40 °C	4.1 V	Constant - Programmable

Catalog

6.5V OVP Single Cell Li-Ion/Li-Polymer Battery Charge Management Controller

Key Features

• + Integrated Input Overvoltage Protection

• + Integrated Pass Transistor

• + Integrated Current Sense

• + Integrated Reverse Discharge Protection

• + Constant Current / Constant Voltage Operation with Thermal Regulation

• + Resistor Programmable Fast Charge Current: 130 mA

• + 1100 mA

• + 4.15V Undervoltage Lockout (UVLO)

• + 18V Absolute Maximum Input

• + Overvoltage Protection (OVP): 6.5V

• + Available options: 10% or Disable

• + Packaging: DFN-10 (3 mm x 3 mm)

Description

The MCP73113 is a single cell, highly integrated Li-Ion battery charge management controller for use in space-limited and cost-sensitive applications. The MCP73113 can accept an absolute maximum of 18V input and provides a 6.5V overvoltage protection. The output current can is programmable to be between 130 mA and 1100 mA. The MCP73113 is fully specified over the ambient temperature range of -40°C to +85°C and is available in a 10 lead, 3x3 mm DFN package.
