560 Series

Catalog

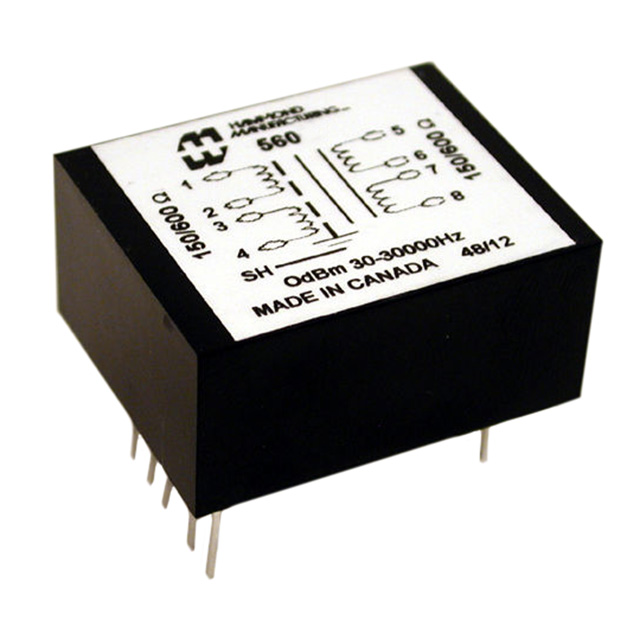

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS AUDIO TRANSFORMER, BROADCAST QUALITY, POTTED, FOR MATCHING OR BRIDGING

Part	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance - Primary (Ohms)	Impedance - Primary (Ohms) [Min]	Transformer Type	Impedance - Secondary (Ohms)	Frequency Response	Frequency Range [Max]	Frequency Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Insertion Loss [Max]	Mounting Type	Impedance - Primary (Ohms) [Max]	Impedance - Primary (Ohms) [Min]	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms) [Min]	Impedance - Secondary (Ohms) [Max]
Hammond Manufacturing 560Q	113.4 g	0.25 lbs	21.59 mm	0.85 in	10k 40k	10k	Broadcast Quality	10k/10k 40k	1 dB	15 kHz	30 Hz	41.66 mm	33.78 mm	1.33 "	1.64 in	PC Pin	1 dB	Through Hole
Hammond Manufacturing 560L	113.4 g	0.25 lbs	21.59 mm	0.85 in			Broadcast Quality	20k	1 dB	30 kHz	30 Hz	41.66 mm	33.78 mm	1.33 "	1.64 in	PC Pin	1 dB	Through Hole	150 Ohms	150 Ohms	600 Ohms	5k	5k
