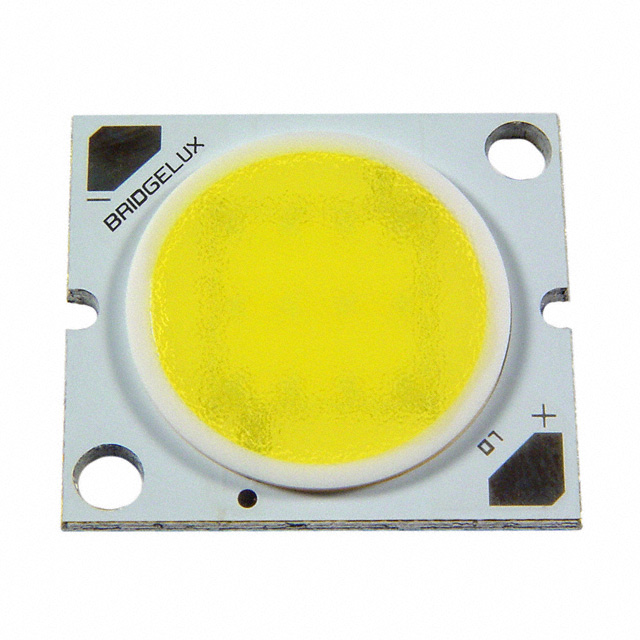

BXRA-C2000 Series
Manufacturer: BRIDGELUX
Beta
⌘K
LED COB LED ARRAY WHT SQ 5600K
| Part | Temperature - Test | Luminous Flux @ Current/Temperature | Configuration | Current - Max [Max] | Type | Viewing Angle | Size / Dimension [x] | Size / Dimension [y] | Height [z] | CCT (K) | Lens Type | Color | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 25 °C | 2200 lm | Square | 2.5 A | Chip On Board (COB) | 120 ° | 22.8 mm | 25.8 mm | 3.5 mm | 5600 K | Domed | Cool White | 1.75 A | 16.6 V | 75 lm/W |
