STL20N6F7 Series
Manufacturer: STMicroelectronics
Beta
⌘K

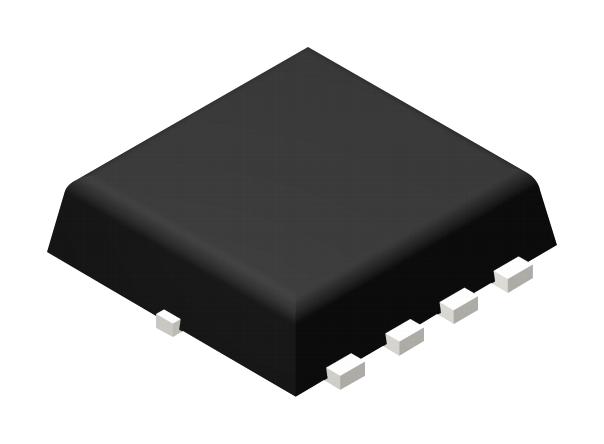

N-CHANNEL 60 V, 0.0046 OHM TYP., 20 A STRIPFET F7 POWER MOSFET IN A POWERFLAT 3.3X3.3 PACKAGE
| Part | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Package / Case | Vgs(th) (Max) @ Id | Technology | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Surface Mount | 100 A | PowerFlat™ (3.3x3.3) | 60 V | 150 °C | -55 °C | 1600 pF | 3 W 78 W | 8-PowerVDFN | 4 V | MOSFET (Metal Oxide) | N-Channel | 10 V | 5.4 mOhm | 25 nC | 20 V |
