A15959 Series

Catalog

THERM PAD 228.6MMX228.6MM GRAY

Part	Color	Adhesive	Outline [y]	Outline [x]	Shape	Type	Thickness	Thickness	Thermal Conductivity	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A15959-17	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	4.32 mm	0.17 "	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-19	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	4.83 mm	0.19 in	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-14	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet			1.8 W/m-K	3.56 mm	0.14 in
Laird Technologies - Thermal Materials A15959-07	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	1.778 mm	0.07 in	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-30	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	7.62 mm	0.3 in	1.8 W/m-K

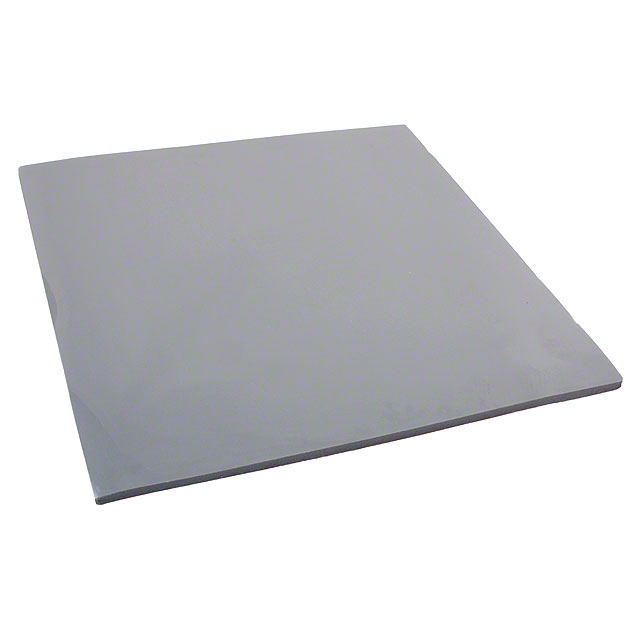

Laird Technologies - Thermal Materials A15959-20	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	200 mils	0.2 "	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-25	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	6.35 mm	0.25 in	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-18	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	4.57 mm	0.18 in	1.8 W/m-K

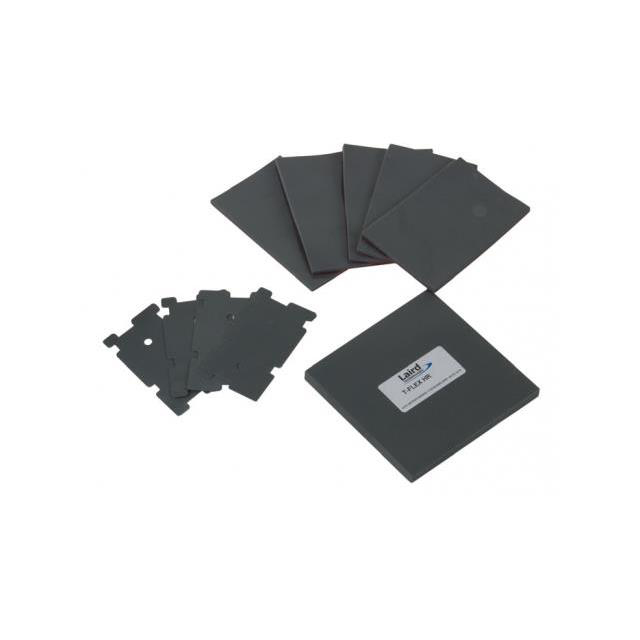

Laird Technologies - Thermal Materials A15959-06	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	1.524 mm	0.06 in	1.8 W/m-K
Laird Technologies - Thermal Materials A15959-13	Gray	Tacky - Both Sides	228.6 mm	228.6 mm	Square	Gap Filler Pad Sheet	3.3 mm	0.13 in	1.8 W/m-K
