T89C51CC01 Series

Catalog

IC MCU 8BIT 32KB FLASH 44VQFP

Part	Core Size (Bit Width)	Core Processor	Program Memory Type	Speed	Mounting Type	Package Length	Package Name	Package Width	Package / Case	Number of I/O	Oscillator Type	Program Memory Size	Program Memory Width	Program Memory Depth	EEPROM Size (Depth)	EEPROM Size (Width)	A/D Channels	A/D Resolution (bits)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	RAM Size Depth	RAM Size Width	Peripherals	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)
Microchip Technology T89C51CC01CA-RLTIM	8 Bit	80C51	FLASH	40 MHz	Surface Mount	10 mm	44-VQFP	10 mm	44-LQFP	32	External	32 KB	8 bit	32 K	2 K	8 bit	8 count	10 bit	3 V	5.5 V	1.25 K	8 bit	POR PWM WDT	CANbus UART USART	85 °C	-40 °C
Microchip Technology T89C51CC01UA-RLTIM	8 Bit	80C51	FLASH	40 MHz	Surface Mount	10 mm	44-VQFP	10 mm	44-LQFP	32	External	32 KB	8 bit	32 K	2 K	8 bit	8 count	10 bit	3 V	5.5 V	1.25 K	8 bit	POR PWM WDT	CANbus UART USART	85 °C	-40 °C
Microchip Technology T89C51CC01CA-SLSIM	8 Bit	80C51	FLASH	40 MHz	Surface Mount	16.6 mm	44-PLCC	16.6 mm	44-LCC (J-Lead)	32	External	32 KB	8 bit	32 K	2 K	8 bit	8 count	10 bit	3 V	5.5 V	1.25 K	8 bit	POR PWM WDT	CANbus UART USART	85 °C	-40 °C

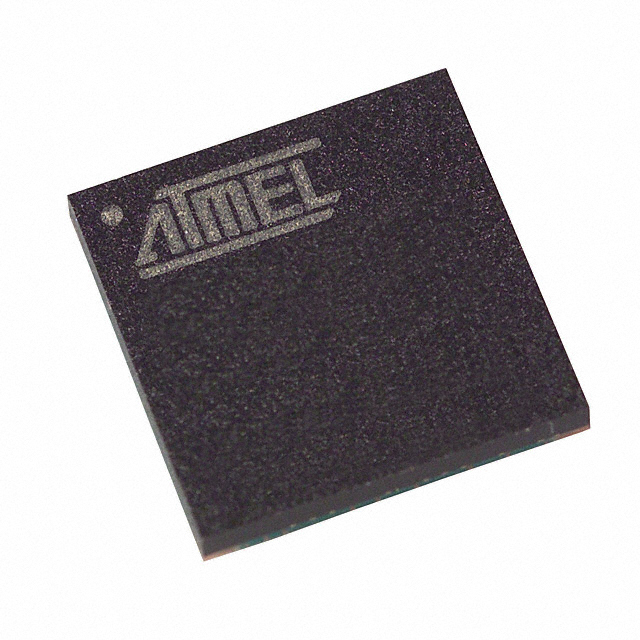

Microchip Technology T89C51CC01CA-7CTIM	8 Bit	80C51	FLASH	40 MHz	Surface Mount	8 mm	64-CSPBGA	8 mm	64-LFBGA CSPBGA	34	External	32 KB	8 bit	32 K	2 K	8 bit	8 count	10 bit	3 V	5.5 V	1.25 K	8 bit	POR PWM WDT	CANbus UART USART	85 °C	-40 °C
