2RS2R Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP 16P 2.0MM PITCH

Part	Contact Finish Thickness - Post	Contact Material	Applications	Contact Shape	Insulation Material	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Termination	Insulation Height	Insulation Height [z]	Voltage Rating	Number of Positions	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating
Adam Tech 2RS2R-16-G	Flash	Phosphor Bronze	General Purpose	Square	Thermoplastic	Female Socket	UL94 V-0	0.079 "	2 mm	All	-40 C	105 ░C	2	2 mm	0.079 in	Flash	Right Angle Through Hole	Receptacle	Solder	4.85 mm	0.191 in	250 VAC	16	Black	Push-Pull	0.118 in	3 mm	Gold	Gold

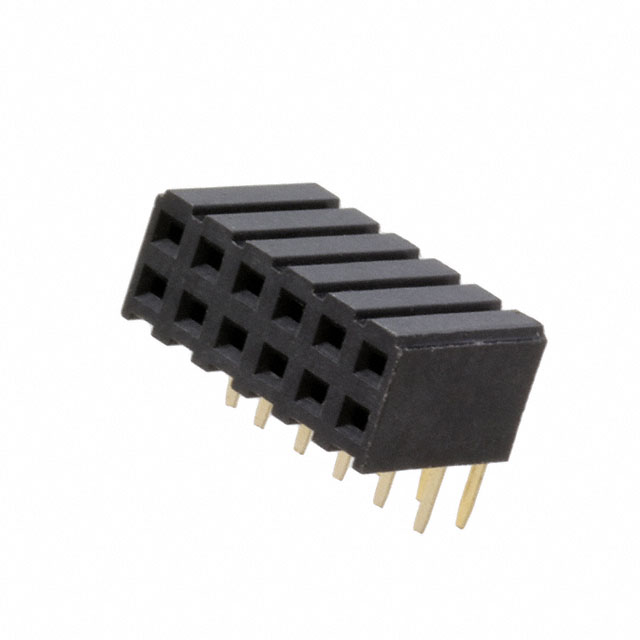

Adam Tech 2RS2R-12-G	Flash	Phosphor Bronze	General Purpose	Square	Thermoplastic	Female Socket	UL94 V-0	0.079 "	2 mm	All	-40 C	105 ░C	2	2 mm	0.079 in	Flash	Right Angle Through Hole	Receptacle	Solder	4.85 mm	0.191 in	250 VAC	12	Black	Push-Pull	0.118 in	3 mm	Gold	Gold
Adam Tech 2RS2R-06-G	Flash	Phosphor Bronze	General Purpose	Square	Thermoplastic	Female Socket	UL94 V-0	0.079 "	2 mm	All	-40 C	105 ░C	2	2 mm	0.079 in	Flash	Right Angle Through Hole	Receptacle	Solder	4.85 mm	0.191 in	250 VAC	6	Black	Push-Pull	0.118 in	3 mm	Gold	Gold
