C0971 Series
Manufacturer: Prysmian Group
Beta
⌘K

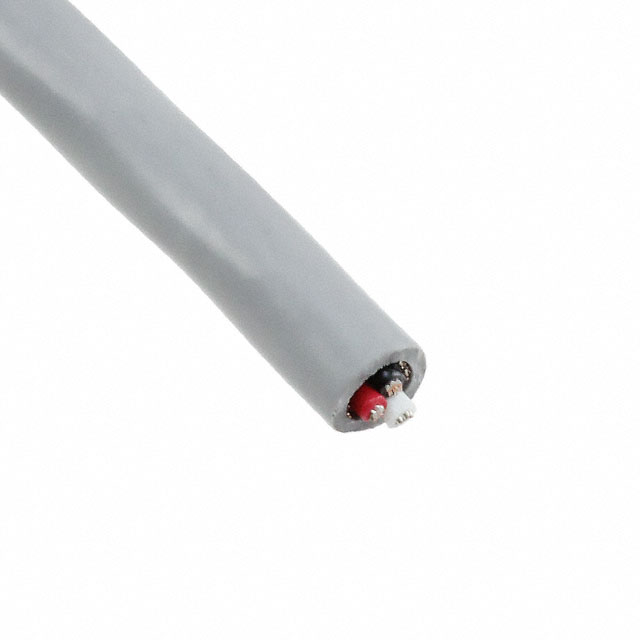

CABLE 3COND 22AWG GRAY SHLD 500'
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Type | Length | Length | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Conductor Insulation | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Material | Voltage | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 0.813 mm | 0.032 in | Multi-Conductor | Braid Foil | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 3 | Gray | 22 AWG | 30 AWG | 7 | 80 °C | -20 ░C | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 5.06 mm | 0.199 in | Computer | Copper Annealed Tinned | 300 VDC | ||
Prysmian Group | 0.813 mm | 0.032 in | Multi-Conductor | Braid Foil | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 3 | Gray | 22 AWG | 30 AWG | 7 | 80 °C | -20 ░C | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 5.06 mm | 0.199 in | Computer | Copper Annealed Tinned | 300 VDC | Copper Flexfoil® Tinned | 65 % 100 % |
