DF61 Series

Catalog

CONNECTOR

Part	Mated Stacking Heights	Insulation Height	Insulation Height	Material Flammability Rating	Style	Number of Positions Loaded	Number of Rows	Fastening Type	Termination	Shrouding	Connector Type	Contact Finish - Post	Contact Type	Features	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Contact Material	Insulation Material	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Note	Color	Pitch	Pitch	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products
Hirose Electric Co Ltd DF61-2P-2.2V(71)
Hirose Electric Co Ltd DF61-2P-2.2V(73)

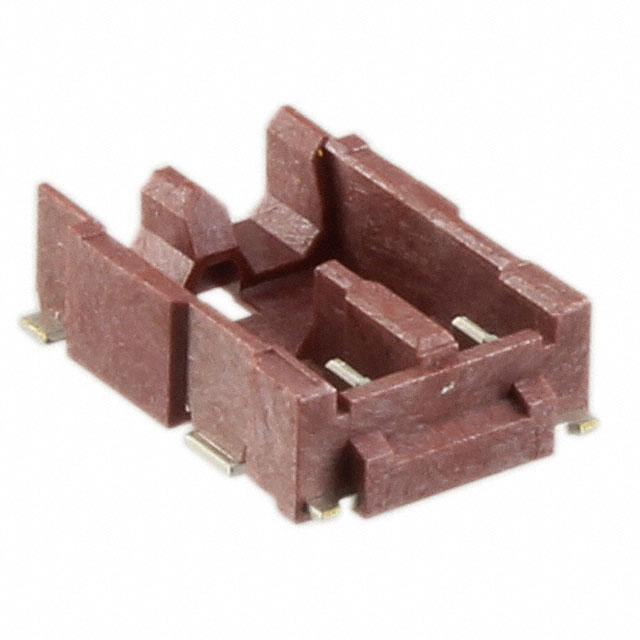

Hirose Electric Co Ltd DF61-2P-2.2V(21)	2.38 mm	0.086 in	2.18 mm	UL94 V-0	Board to Cable/Wire	All	1	Swing Lock	Solder	Shrouded - 3 Wall	Header	Tin	Male Blade	Solder Retention	0.087 in	2.2 mm	Surface Mount	Red	Brass	Liquid Crystal Polymer (LCP)	Rectangular	2	-55 C	105 ░C	39.4 µin	1 µm

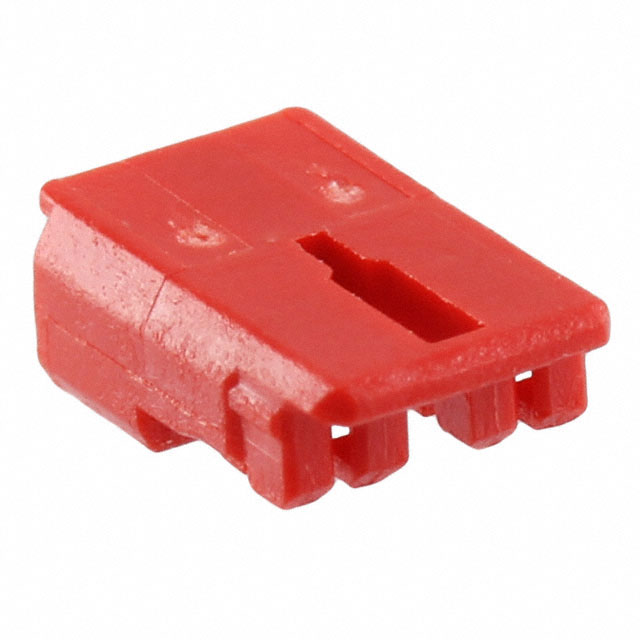

Hirose Electric Co Ltd DF61-2S-2.2C(11)							1	Swing Lock			Socket		Female Socket				Free Hanging (In-Line)			Polybutylene Terephthalate (PBT)		2	-55 C	105 ░C			Contacts Not Included	Red	2.2 mm	0.087 in	Crimp

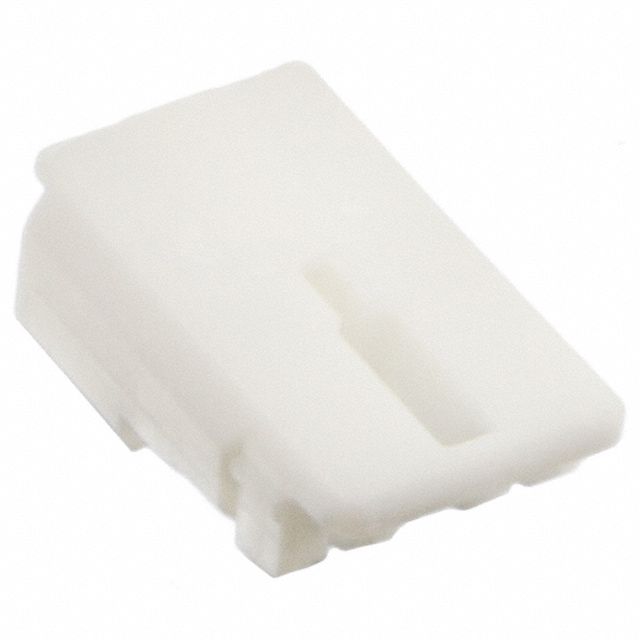

Hirose Electric Co Ltd DF61-2S-2.2C(13)							1	Swing Lock			Socket		Female Socket				Free Hanging (In-Line)			Polybutylene Terephthalate (PBT)		2	-55 C	105 ░C			Contacts Not Included	Beige	2.2 mm	0.087 in	Crimp

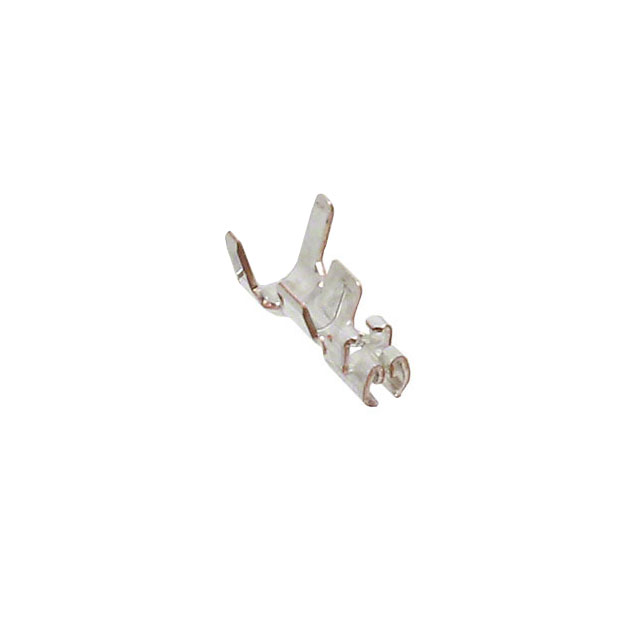

Hirose Electric Co Ltd DF61-2628SCF																															Crimp	Socket	1 Ám	39.4 Áin	Tin
Hirose Electric Co Ltd DF61-2630SCF(41)																															Crimp	Socket	1 Ám	39.4 Áin	Tin	26 AWG	30 AWG

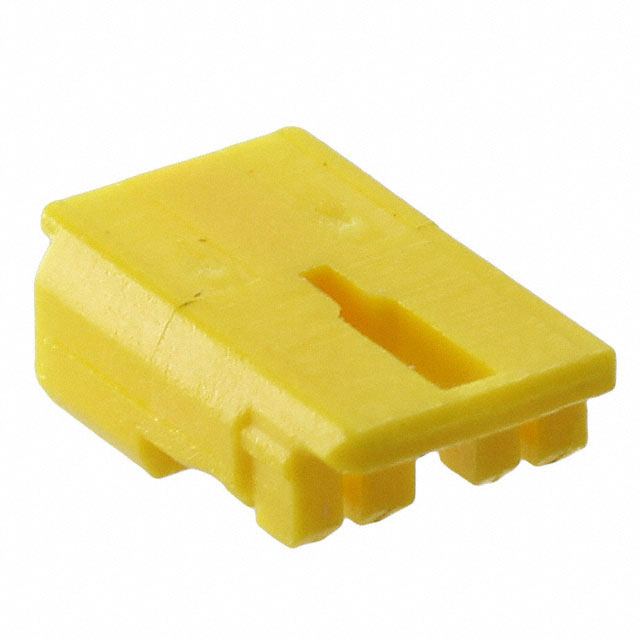

Hirose Electric Co Ltd DF61-2S-2.2C(12)							1	Swing Lock			Socket		Female Socket				Free Hanging (In-Line)			Polybutylene Terephthalate (PBT)		2	-55 C	105 ░C			Contacts Not Included	Yellow	2.2 mm	0.087 in	Crimp
Hirose Electric Co Ltd HT305/DF61-2628S																																						26 AWG	28 AWG	Hand Crimper	Rectangular Contacts
Hirose Electric Co Ltd DF61-2S-2.2C(03)							1	Swing Lock			Socket		Female Socket				Free Hanging (In-Line)			Polybutylene Terephthalate (PBT)		2	-55 C	105 ░C			Contacts Not Included	Beige	2.2 mm	0.087 in	Crimp
