HIF3FB Series

Catalog

CONN RCPT 34POS 0.1 GOLD PCB

Part	Contact Material	Applications	Contact Shape	Insulation Material	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Features	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Number of Positions [custom]	Insulation Color	Contact Finish - Post	Fastening Type	Style	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Termination	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Positions

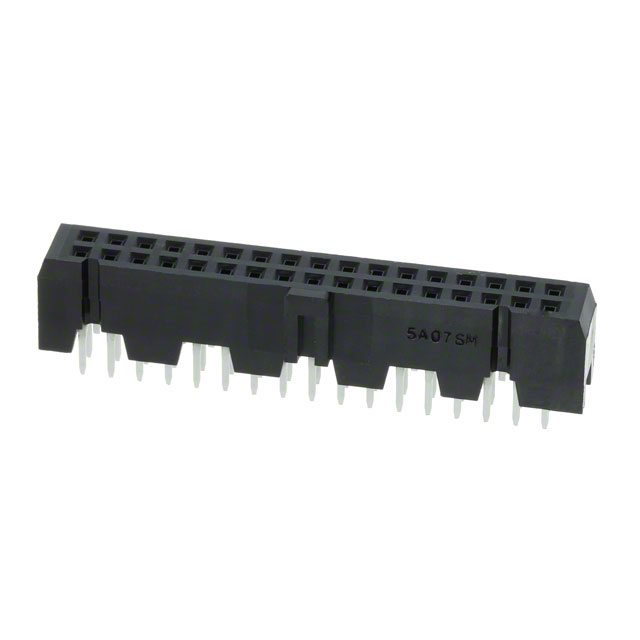

Hirose Electric Co Ltd HIF3FB-34DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm	34	Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm

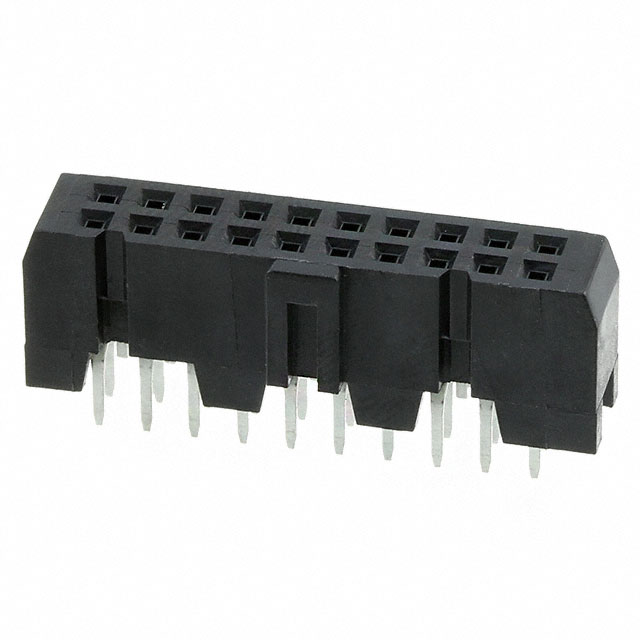

Hirose Electric Co Ltd HIF3FB-20DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	20

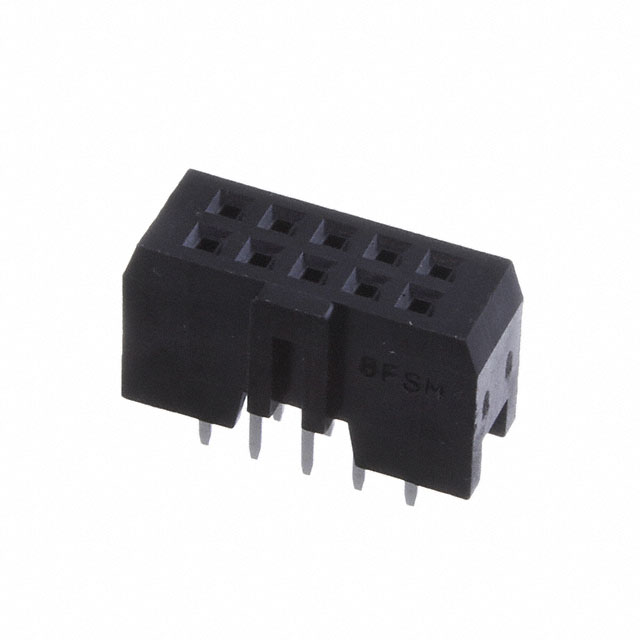

Hirose Electric Co Ltd HIF3FB-10DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	10
Hirose Electric Co Ltd HIF3FB-10DA-2.54DSA(69)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)			Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black		Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	10
Hirose Electric Co Ltd HIF3FB-16DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	16

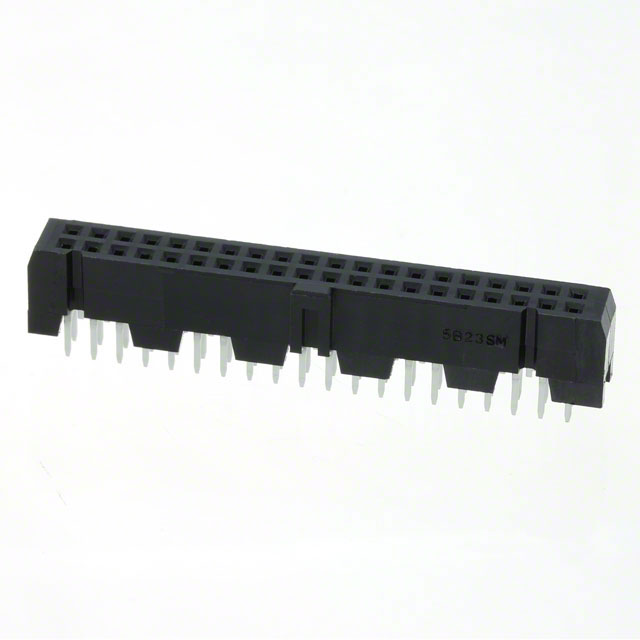

Hirose Electric Co Ltd HIF3FB-40DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	40
Hirose Electric Co Ltd HIF3FB-60DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	60

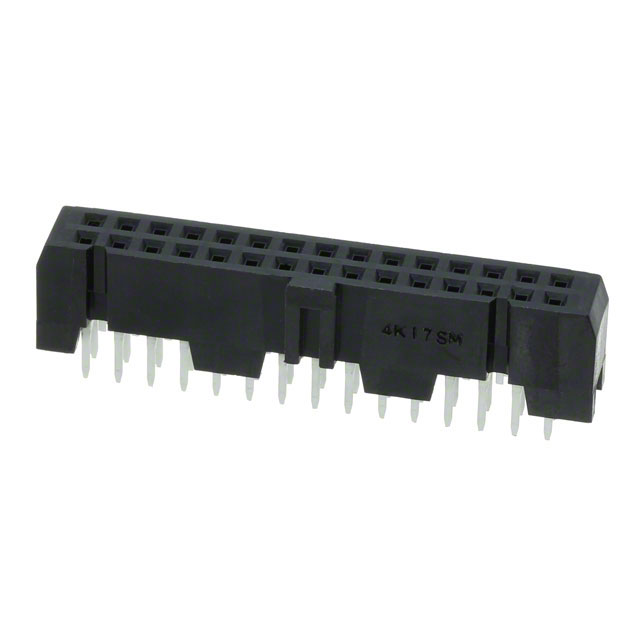

Hirose Electric Co Ltd HIF3FB-30DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	30

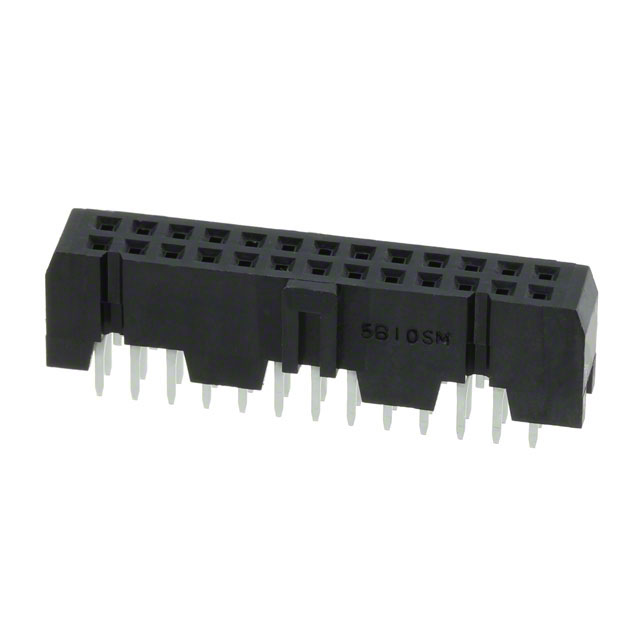

Hirose Electric Co Ltd HIF3FB-26DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	26

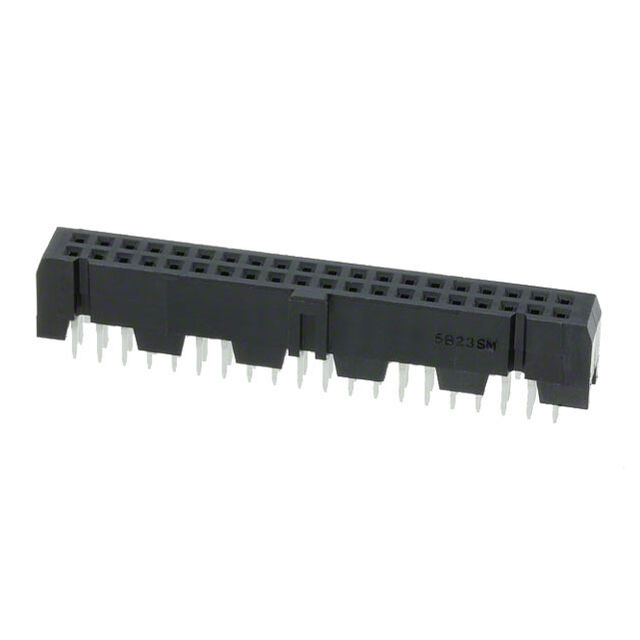

Hirose Electric Co Ltd HIF3FB-50DA-2.54DSA(71)	Copper Alloy	General Purpose	Square	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	Polarizing Key	Female Socket	0.1 in	2.54 mm	2	9.5 mm	0.374 in	Receptacle	UL94 V-0	0.1 "	2.54 mm	-55 C	85 °C	12.2 mm		Black	Tin	Push-Pull	Board to Board Cable	All	Gold	8 µin	0.203 µm	200 VAC	Solder	Through Hole	0.118 in	3 mm	50
