SMA(R) Series

Catalog

RF CONNECTORS / COAXIAL CONNECTORS

Part	Center Contact Plating	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Housing Color	Connector Style	Number of Ports	Mounting Feature	Frequency - Max [Max]	Shield Termination	Impedance	Center Contact Material	Mounting Type	Fastening Type	Connector Type	Contact Termination	Cable Group
Hirose Electric Co Ltd SMA(R)-200-088PJ4BN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1	Flange	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder
Hirose Electric Co Ltd SMA(R)-200-040JBN	Gold	Polytetrafluoroethylene (PTFE)	500	-40 C	90 °C	Brass	Nickel	Silver	SMA	1		6000 MHz	Clamp	50 Ohms	Brass	Free Hanging (In-Line)	Threaded	Jack Male Pin	Solder

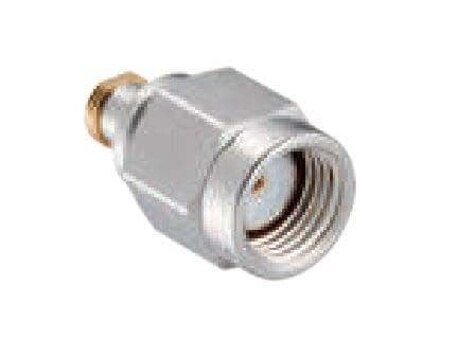

Hirose Electric Co Ltd SMA(R)-200-066PBN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1		6000 MHz	Clamp	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	Threaded	Female Socket Plug	Solder
Hirose Electric Co Ltd SMA(R)-200-040PBN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1		6000 MHz	Clamp	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	Threaded	Female Socket Plug	Solder
Hirose Electric Co Ltd SMA(R)-P-2.5DQS	Gold	Polytetrafluoroethylene (PTFE)	1000	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1		18 GHz	Crimp	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	Threaded	Female Socket Plug	Solder	2.5D-2V
Hirose Electric Co Ltd SMA(R)-200-040WBPJBN	Gold	Polytetrafluoroethylene (PTFE)	500	-40 C	90 °C	Brass	Nickel	Silver	SMA	1	Bulkhead - Front Side Nut	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder

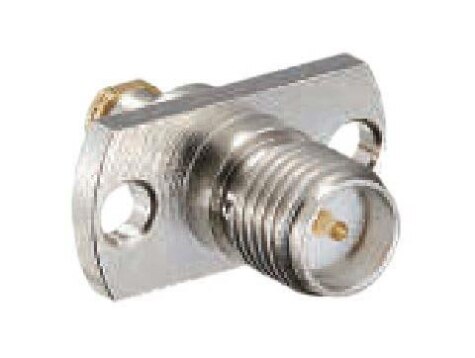

Hirose Electric Co Ltd SMA(R)-200-040PJ2BN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1	Flange	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder
Hirose Electric Co Ltd SMA(R)-200-088PJ2BN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1	Flange	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder
Hirose Electric Co Ltd SMA(R)-200-040BPJBN	Gold	Polytetrafluoroethylene (PTFE)	500	-40 C	90 °C	Brass	Nickel	Silver	SMA	1	Bulkhead - Front Side Nut	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder
Hirose Electric Co Ltd SMA(R)-200-066PJ2BN	Gold	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Brass	Nickel	Silver	SMA	1	Flange	6000 MHz	Clamp	50 Ohms	Brass	Panel Mount	Threaded	Jack Male Pin	Solder
