HIF3BDF Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Shrouding	Contact Type	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Features	Connector Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Termination	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Contact Finish - Mating	Style	Insulation Height [z]	Insulation Height [z]	Insulation Material	Number of Rows [custom]	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height

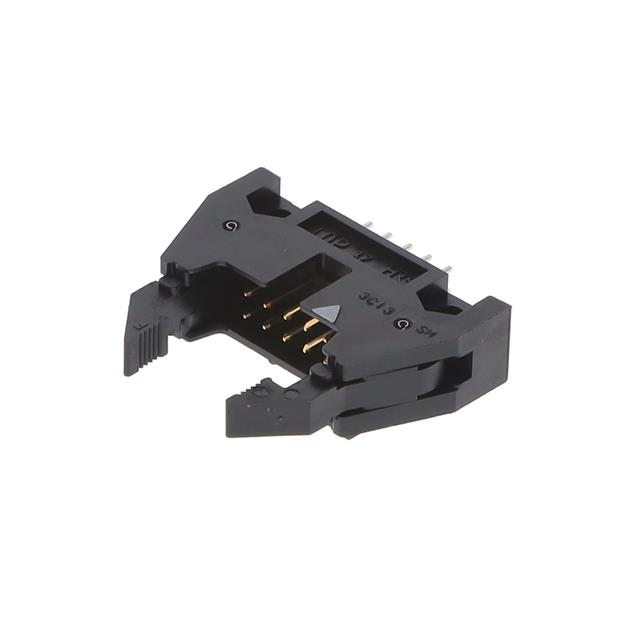

Hirose Electric Co Ltd HIF3BDF-10PA-2.54DSA(63)	78.7 µin	2 µm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks	8 µin	0.203 µm	Brass	Keying Slot	Header	Tin	0.1 in	2.54 mm	-55 C	85 °C	Varies by Wire Gauge	200 V	Solder	0.1 "	2.54 mm	Through Hole	UL94 V-0	Gold	Board to Cable/Wire	0.701 in	17.8 mm	Polybutylene Terephthalate (PBT)	2	Black	All	10	0.13 "	3.3 mm
Hirose Electric Co Ltd HIF3BDF-10PA-2.54DSA(71)	78.7 µin	2 µm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks	8 µin	0.203 µm	Brass		Header	Tin	0.1 in	2.54 mm	-55 C	85 °C		200 V	Solder	0.1 "	2.54 mm	Through Hole	UL94 V-0	Gold	Board to Cable/Wire	0.701 in	17.8 mm	Polybutylene Terephthalate (PBT)	2	Black	All	10	0.13 "	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric Co Ltd HIF3BDF-10PA-2.54DS(63)	78.7 µin	2 µm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks	8 µin	0.203 µm	Brass		Header	Tin	0.1 in	2.54 mm	-55 C	85 °C	Varies by Wire Gauge	200 V	Solder	0.1 "	2.54 mm	Right Angle Through Hole	UL94 V-0	Gold	Board to Cable/Wire			Polybutylene Terephthalate (PBT)	2	Black	All	10	0.118 in	3 mm					0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BDF-10PA-2.54WB(63)	78.7 µin	2 µm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks	8 µin	0.203 µm	Brass		Header	Tin	0.1 in	2.54 mm	-55 C	85 °C	Varies by Wire Gauge	200 V	Solder	0.1 "	2.54 mm	Right Angle Through Hole	UL94 V-0	Gold	Board to Cable/Wire			Polybutylene Terephthalate (PBT)	2	Black	All	10	0.118 in	3 mm					0.335 "	8.51 mm
