STLD125 Series
Manufacturer: STMicroelectronics
Beta
⌘K

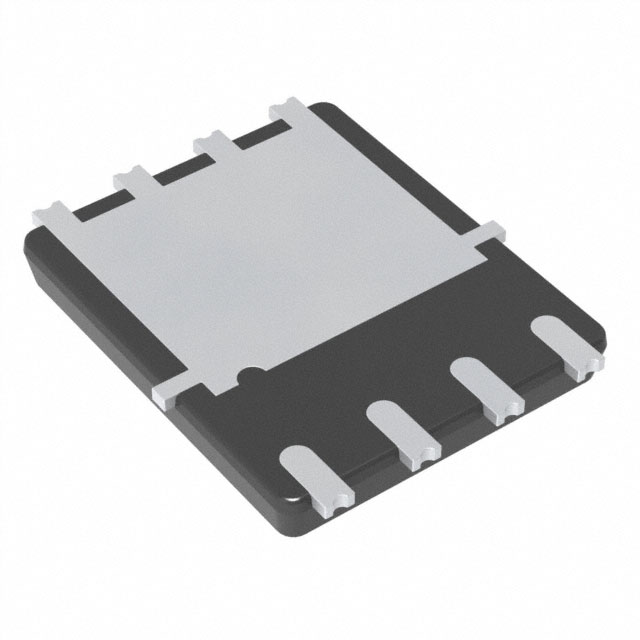

AUTOMOTIVE-GRADE N-CHANNEL 40 V, 2.4 MOHM TYP., 120 A STRIPFET F6 POWER MOSFET IN A POWERFLAT 5X6 DUAL SIDE COOLING PACKAGE
| Part | Vgs (Max) | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs [Max] | Grade | Supplier Device Package | Package / Case | Qualification | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Drive Voltage (Max Rds On, Min Rds On) [Max] | Technology | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 20 V | 130 W | 91 nC | 3 mOhm | Automotive | PowerFlat™ (5x6) Dual Side | 8-PowerWDFN | AEC-Q101 | 120 A | 5600 pF | 10 V | 6.5 V | MOSFET (Metal Oxide) | 40 V | 175 °C | -55 °C | N-Channel | Surface Mount |
