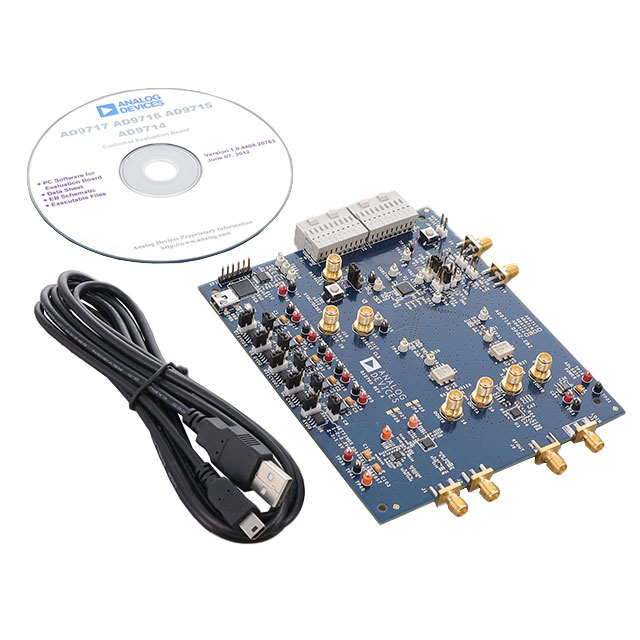

Dual, 10-Bit Low Power Digital-to-Analog Converters
Key Features
• Power dissipation @ 3.3 V, 2 mA output
• 37 mW @ 10 MSPS
• 86 mW @ 125 MSPS
• Sleep mode: <3 mW @ 3.3 V
• Supply voltage: 1.8 V to 3.3 V
• SFDR to Nyquist
• 84 dBc @ 1 MHz output
• 75 dBc @ 10 MHz output
• AD9715: NSD @ 10 MHz output, 125 MSPS, 2 mA: −141 dBc/Hz
• Differential current outputs: 1 mA to 4 mA
• 2 on-chip auxiliary DACs
• CMOS inputs with single-port operation
• Output common mode: adjustable 0 V to 1.2 V
• Small footprint 40-lead LFCSP RoHS-compliant package
Description
AI
TheAD9714/AD9715/AD9716/AD9717are pin-compatible, dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC®converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost.The AD9714/AD9715/AD9716/AD9717 offer exceptional ac and dc performance and support update rates up to 125 MSPS.The flexible power supply operating range of 1.8 V to 3.3 V and low power dissipation of the AD9714/AD9715/AD9716/AD9717 make them well-suited for portable and low power applications.PRODUCT HIGHLIGHTSLow Power.DACs operate on a single 1.8 V to 3.3 V supply; total power consumption reduces to 35 mW at 125 MSPS with a 1.8 V supply. Sleep and power-down modes are provided for low power idle periods.LVCMOS Clock Input.High speed, single-ended LVCMOS clock input supports a 125 MSPS conversion rate.Easy Interfacing to Other Components.Adjustable output common mode from 0 V to 1.2 V allows easy interfacing to other components that accept common- mode levels greater than 0 V.APPLICATIONSWireless infrastructuresPicocell, femtocell base stationsMedical instrumentationUltrasound transducer excitationPortable instrumentationSignal generators, arbitrary waveform generators
