MIC45205 Series

26V/6A Synchronous Step Down Regulator Power Module w/Hyper Light Load™, Hyper Speed Control™

Catalog

26V/6A Synchronous Step Down Regulator Power Module w/Hyper Light Load™, Hyper Speed Control™

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Applications	Type	Current - Output (Max) [Max]	Mounting Type	Efficiency	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output	Current - Output	Utilized IC / Part	Supplied Contents	Frequency - Switching	Board Type	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type
Microchip Technology MIC45205-2YMP-T1	0.8 V	5.5 V	1	52-PowerBFQFN	8 mm	0.31 "	3 mm	0.12 in	0.31 "	8 mm	125 °C	-40 °C	OCP OTP Remote On/Off SCP	26 V	ITE (Commercial)	Non-Isolated PoL Module	6 A	Surface Mount	93 %	52-QFN (8x8)	4.5 V
Microchip Technology MIC45205-1YMP-T1	0.8 V	5.5 V	1	52-PowerBFQFN	8 mm	0.31 "	3 mm	0.12 in	0.31 "	8 mm	125 °C	-40 °C	OCP OTP Remote On/Off SCP	26 V	ITE (Commercial)	Non-Isolated PoL Module	6 A	Surface Mount	93 %	52-QFN (8x8)	4.5 V

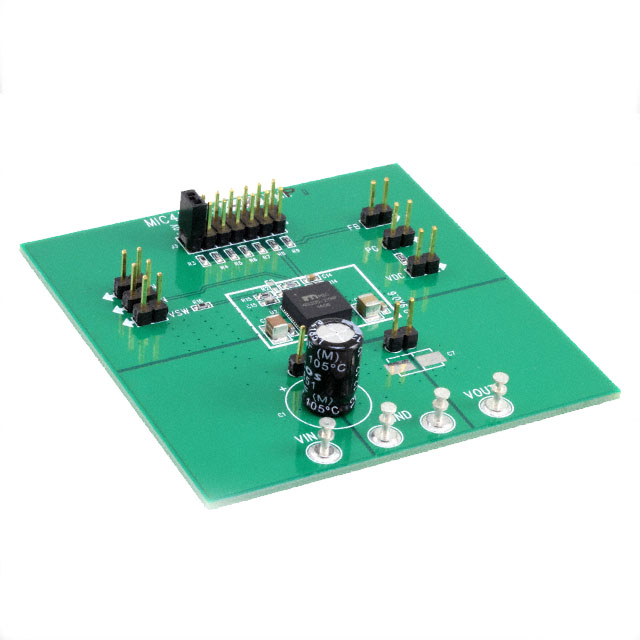

Microchip Technology MIC45205-1YMP-EV																						5 V	6 A	MIC45205-1	Board(s)	600 kHz	Fully Populated	Buck	DC/DC Step Down	4.5 V	26 V	Non-Isolated	1
Microchip Technology MIC45205-2YMP-TR	0.8 V	5.5 V	1	52-PowerBFQFN	8 mm	0.31 "	3 mm	0.12 in	0.31 "	8 mm	125 °C	-40 °C	OCP OTP Remote On/Off SCP	26 V	ITE (Commercial)	Non-Isolated PoL Module	6 A	Surface Mount	93 %	52-QFN (8x8)	4.5 V
Microchip Technology MIC45205-2YMP-EV																						5 V	6 A	MIC45205-2	Board(s)	600 kHz	Fully Populated	Buck	DC/DC Step Down	4.5 V	26 V	Non-Isolated	1

Catalog

26V/6A Synchronous Step Down Regulator Power Module w/Hyper Light Load™, Hyper Speed Control™

Key Features

• * No compensation required

• * Up to 6A output current

• * >93% peak efficiency

• * Output voltage: 0.8V to 85% of VIN with ±1% accuracy

• * Adjustable switching frequency from 200kHz to 600kHz

• * Enable input and open-drain power good output

• * Hyper Speed Control (MIC45205-2) architecture enables fast transient response

• * HyperLight Load (MIC45205-1) improves light load efficiency

• * Supports safe startup into pre-biased output

• * CISPR22, Class B compliant

• * –40°C to +125°C junction temperature range

• * Thermal-shutdown protection

• * Short-circuit protection with hiccup mode

• * Adjustable current limit

• * Available in 52-pin 8mm × 8mm × 3mm QFN package

Description

MIC45205 is a synchronous step-down regulator module, featuring a unique adaptive ON-time control architecture. The module incorporates a DC-to-DC controller, power MOSFETs, bootstrap diode, bootstrap capacitor, and an inductor in a single package; simplifying the design and layout process for the end user. This highly-integrated solution expedites system design and improves product time-to-market. The internal MOSFETs and inductor are optimized to achieve high efficiency at a low output voltage. The fully-optimized design can deliver up to 6A current under a wide input voltage range of 4.5V to 26V, without requiring additional cooling. The MIC45205-1 uses HyperLight Load® (HLL) MIC45205-2 uses Hyper Speed Control™ architecture which enables ultra-fast load transient response, allowing for a reduction of output capacitance. The MIC45205 offers 1% output accuracy that can be adjusted from 0.8V to 85% of VIN with two external resistors. Additional features include thermal shutdown protection, input undervoltage lockout, adjustable current limit, and short circuit protection. The MIC45205 allows for safe start-up into a pre-biased output.
