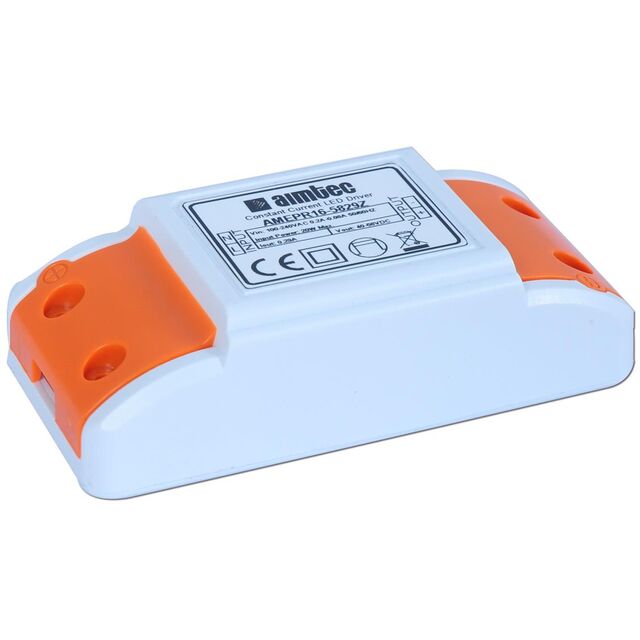

AMEPR16 Series
Manufacturer: aimtec
Beta
⌘K
LED DRIVER CC AC/DC 40-58V 290MA
| Part | Mounting Type | Weight [custom] | Weight [custom] | Topology | Approval Agency | Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Efficiency | Voltage - Isolation | Termination Style | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Features | Voltage - Input (Min) [Min] | Ratings | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Input (Max) [Max] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | Chassis Mount | 0.154 lb | 70 g | AC DC Converter | CE | Constant Current | -20 ░C | 50 °C | 290 mA | 88 % | 3750 VDC | Wire Leads | 1.08 " | 27.5 mm | 3.68 in | 1.76 in | 44.7 mm | 93.5 mm | 17 W | SCP | 90 V | IP20 | 58 V | 40 VDC | 264 V | 1 |
