C5039 Series
Manufacturer: Prysmian Group
Beta
⌘K

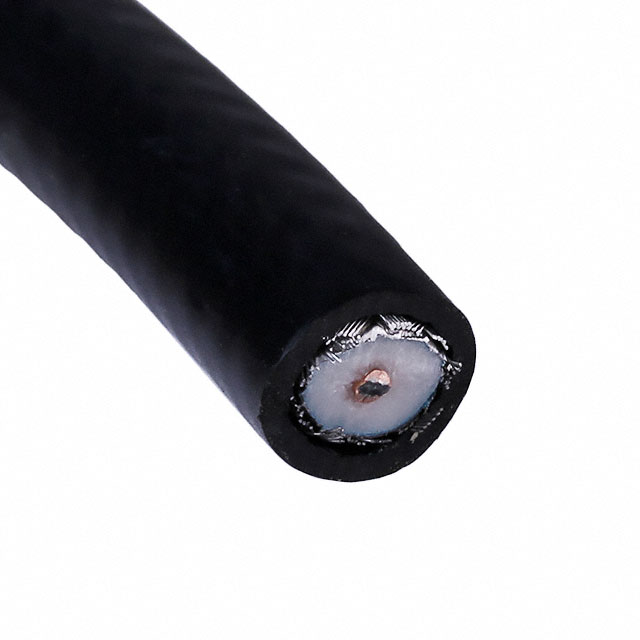

CABLE COAXIAL RG-11 14AWG 1000'
| Part | VoP, Velocity of Propagation | Shield Material | Jacket Color | Usage | Cable Type | Jacket (Insulation) Material | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Conductor Strand | Shield Type | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Cable Group | Length [x] | Length [x] | Shield Coverage [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 85 | Aluminum Flexfoil® | White | CATV | Coaxial | Poly-Vinyl Chloride (PVC) | 75 Ohms | 0.395 in | 10.03 mm | Copper Coated Steel | 2.08 mm² 14.5 AWG | Solid | Braid Foil | 0.28 in | 7.11 mm | RG-11 | 304.8 m | 1000 ft | 60 % 100 % | ||
 Prysmian Group | 85 | Aluminum Flexfoil® | Black | CATV | Coaxial | Poly-Vinyl Chloride (PVC) | 75 Ohms | 0.395 in | 10.03 mm | Copper Coated Steel | 2.08 mm² 14.5 AWG | Solid | Braid Foil | 0.28 in | 7.11 mm | RG-11 | 304.8 m | 1000 ft | 60 % 100 % | 100 ' | 30.48 m |
Prysmian Group | Black | CATV | Coaxial | Poly-Vinyl Chloride (PVC) | 75 Ohms | 0.395 in | 10.03 mm | 2.08 mm² 14.5 AWG | Solid | Braid Foil | RG-11 | 152.4 m 304.8 m | 500 ft 1000 ft | 100 ' | 30.48 m | ||||||
Prysmian Group | White | CATV | Coaxial | Poly-Vinyl Chloride (PVC) | 75 Ohms | 0.395 in | 10.03 mm | 2.08 mm² 14.5 AWG | Solid | Braid Foil | RG-11 | 304.8 m | 1000 ft |
