C0721 Series
Manufacturer: Prysmian Group
Beta
⌘K

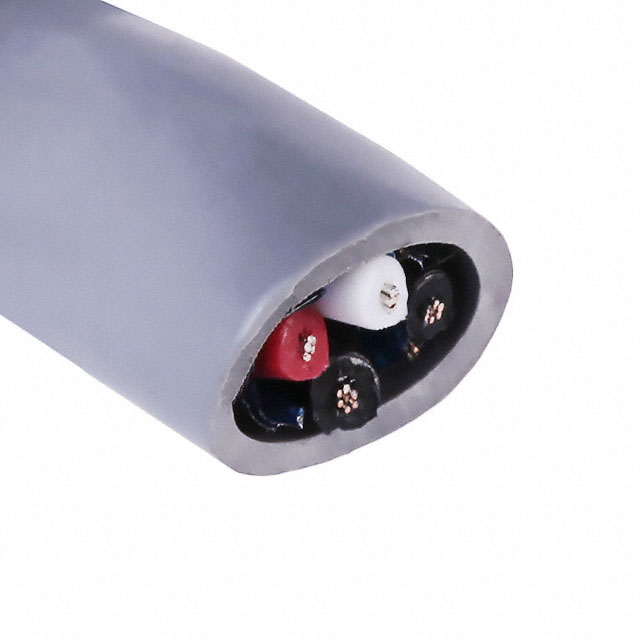

MULTI-PAIR 4COND 22AWG GRAY 500'
| Part | Number of Conductors | Wire Gauge | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Usage | Ratings | Conductor Material | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Features | Length [x] | Length [x] | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 4 | 22 AWG | Gray | Poly-Vinyl Chloride (PVC) | 5.94 mm | 0.234 in | 30 AWG | 7 | Foil | Computer | ASTM B-33 | Copper Annealed Tinned | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 300 VDC | 80 °C | -20 ░C | Multi-Pair | Drain Wire | 100 ft | 30.5 m | ||
Prysmian Group | 4 | 22 AWG | Gray | Poly-Vinyl Chloride (PVC) | 5.94 mm | 0.234 in | 30 AWG | 7 | Foil | Computer | ASTM B-33 | Copper Annealed Tinned | 152.4 m 304.8 m | 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 300 VDC | 80 °C | -20 ░C | Multi-Pair | Drain Wire | 100 ft | 30.5 m | 100 % | Flexfoil® |
