BAS19L Series

Switching Diode, High Voltage 120 V

Catalog

Switching Diode, High Voltage 120 V

Part	Supplier Device Package	Current - Average Rectified (Io)	Technology	Capacitance @ Vr, F	Speed	Speed	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If
ON Semiconductor BAS19LT1	SOT-23-3 (TO-236)	200 mA	Standard	5 pF	Any Speed	200 mA	100 nA	120 V	150 °C	-55 °C	50 ns	SC-59 SOT-23-3 TO-236-3	Surface Mount	1.25 V
ON Semiconductor BAS19	SOT-23-3 (TO-236)	200 mA	Standard	5 pF	Any Speed	200 mA	100 nA	100 V	150 °C	-55 °C	50 ns	SC-59 SOT-23-3 TO-236-3	Surface Mount	1.25 V
ON Semiconductor BAS19	SOT-23-3	200 mA	Standard	5 pF	Any Speed	200 mA	100 nA	120 V	150 °C	-55 °C	50 ns	SC-59 SOT-23-3 TO-236-3	Surface Mount	1.25 V
ON Semiconductor BAS19LT1G	SOT-23-3 (TO-236)	200 mA	Standard	5 pF	Any Speed	200 mA	100 nA	120 V	150 °C	-55 °C	50 ns	SC-59 SOT-23-3 TO-236-3	Surface Mount	1.25 V

Catalog

Switching Diode, High Voltage 120 V

Key Features

• Pb-Free Package is Available.

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Description

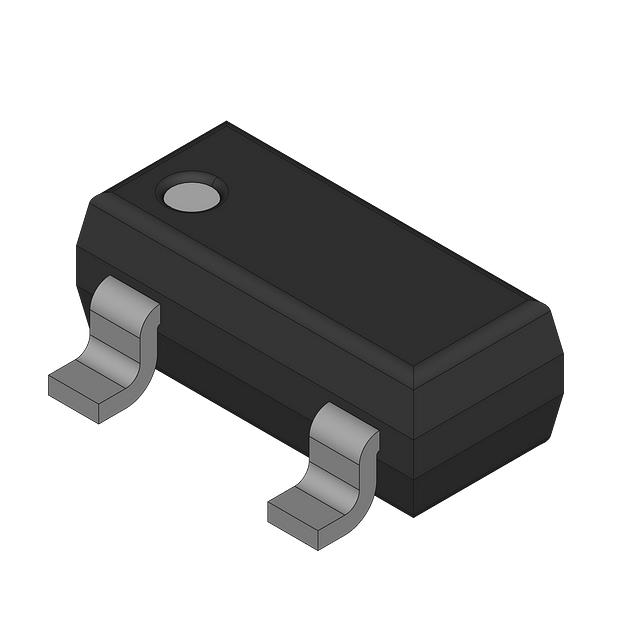

The high voltage switching diode is designed for high voltage, high speed switching applications. This dual diode device contains two electrically isolated high voltage switching diodes encapsulated in a SOT-23 surface mount package.
