TEL 2 Series

Catalog

MODULE DC-DC 12VIN 2-OUT -15V/15V -0.065A/0.065A 2W 6-PIN DIP

Part	Power (Watts)	Type	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Features	Voltage - Output 2	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)
Traco Power TEL 2-1223	2 W	Isolated Module	1.5 kV	65 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	15 V	SCP	-15 V	2	18 V	78 %	Through Hole	9 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-2423	2 W	Isolated Module	1.5 kV	65 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	15 V	SCP	-15 V	2	36 V	80 %	Through Hole	18 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-1210	1.7 W	Isolated Module	1.5 kV	500 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	3.3 V	SCP		1	18 V	73 %	Through Hole	9 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-4821	2 W	Isolated Module	1.5 kV		0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	5 V	SCP	-5 V	2	75 V	71 %	Through Hole	36 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-4811	2 W	Isolated Module	1.5 kV	400 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	5 V	SCP		1	75 V	73 %	Through Hole	36 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-0522	2 W	Isolated Module	1.5 kV		0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	12 V	SCP	-12 V	2	9 V	69 %	Through Hole	4.5 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C	85 mA	85 mA
Traco Power TEL 2-0512	2 W	Isolated Module	1.5 kV	165 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	12 V	SCP		1	9 V	75 %	Through Hole	4.5 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C

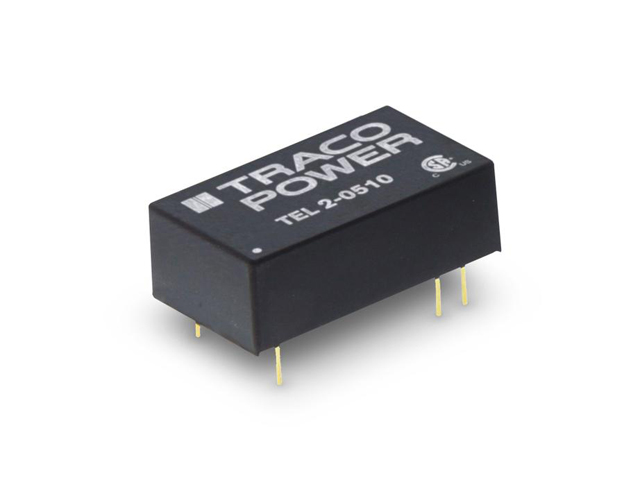

Traco Power TEL 2-4823	2 W	Isolated Module	1.5 kV	65 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	15 V	SCP	-15 V	2	75 V	77 %	Through Hole	36 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-0511	2 W	Isolated Module	1.5 kV	400 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	5 V	SCP		1	9 V	73 %	Through Hole	4.5 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
Traco Power TEL 2-4810	1.7 W	Isolated Module	1.5 kV	500 mA	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	3.3 V	SCP		1	75 V	71 %	Through Hole	36 V	16-DIP Module 6 Leads	ITE (Commercial)	-40 C	75 ░C
