18-3510 Series
Manufacturer: Aries Electronics
Beta
⌘K

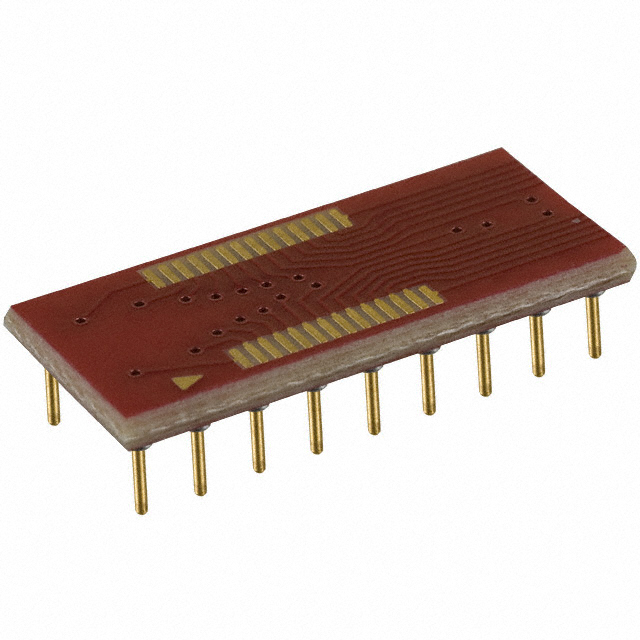

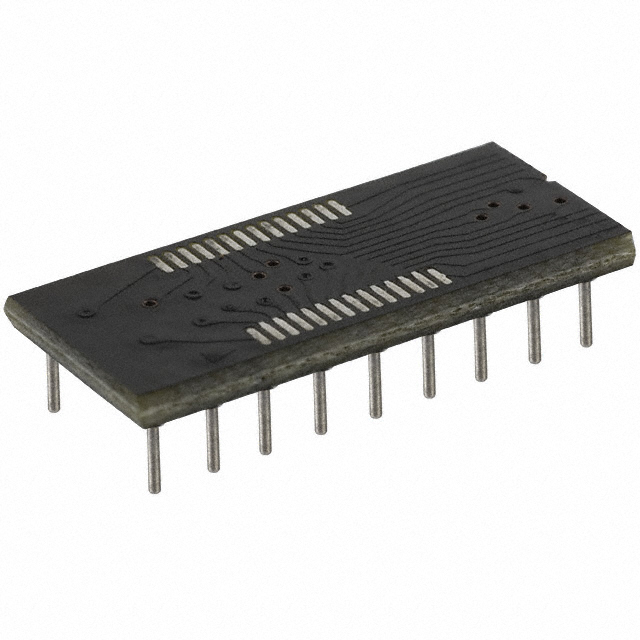

SOCKET ADAPTER SSOP TO 18DIP 0.3
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination Post Length | Termination Post Length | Contact Material - Post [custom] | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Number of Pins | Mounting Type | Convert From (Adapter End) | Contact Finish - Mating | Contact Finish - Post | Board Material | Pitch - Post | Pitch - Post | Termination | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 10 Áin | 0.25 çm | 0.125 in | 3.18 mm | Brass | 7.62 mm | DIP | 0.3 in | 18 | Through Hole | SSOP | Gold | Gold | FR4 Epoxy Glass | 0.1 in | 2.54 mm | Solder | 0.65 mm | 0.026 in |
 Aries Electronics | 200 µin | 5.08 µm | 0.125 in | 3.18 mm | Brass | 7.62 mm | DIP | 0.3 in | 18 | Through Hole | SSOP | Tin-Lead | FR4 Epoxy Glass | 0.1 in | 2.54 mm | Solder | 0.65 mm | 0.026 in |
