NTTFD021N08C Series

MOSFET, Power, 80V POWERTRENCH® Power Clip Half Bridge Configuration

Catalog

MOSFET, Power, 80V POWERTRENCH® Power Clip Half Bridge Configuration

Part	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Supplier Device Package	Package / Case	Mounting Type	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Configuration	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Power - Max [Max]

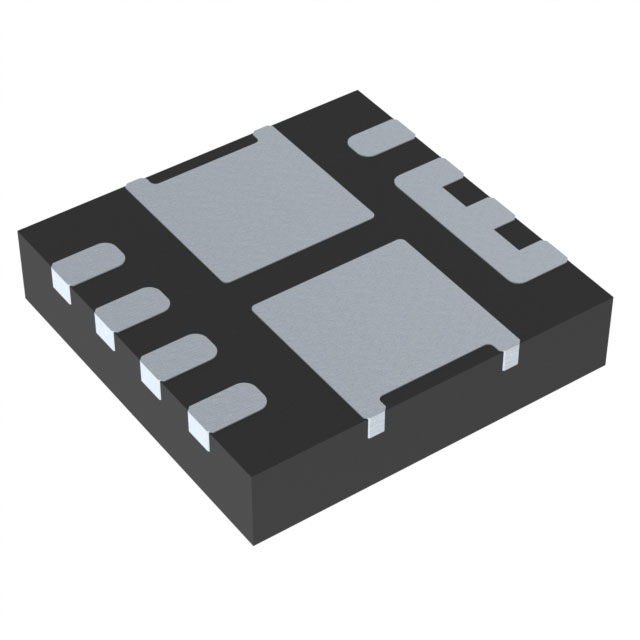

ON Semiconductor NTTFD021N08C	MOSFET (Metal Oxide)	-55 °C	150 °C	80 V	12-WQFN (3.3x3.3)	12-PowerWQFN	Surface Mount	4 V	21 mOhm	6 A 24 A	2 N-Channel (Dual)	8.4 nC	572 pF	1.7 W 26 W

MOSFET, Power, 80V POWERTRENCH® Power Clip Half Bridge Configuration

• Advance Package Technology in Small Footprint (3x3mm)

• Low RDS(on)

• Low Qg and Capacitance

MOSFET, Power, 80V POWERTRENCH® Power Clip Symmetric Dual N-Channel, 21mΩ @ 10V, 24A, WQFN12 3.3x3.3mm
