C0910 Series
Manufacturer: Prysmian Group
Beta
⌘K

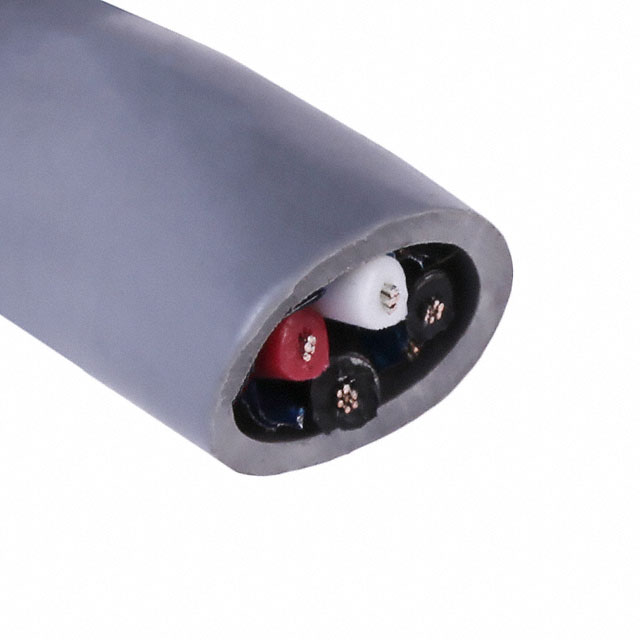

MULTI-PAIR 4CON 24AWG GRAY
| Part | Conductor Insulation | Jacket Color | Voltage | Features | Number of Conductors | Usage | Length | Length | Wire Gauge | Jacket (Insulation) Material | Ratings | Shield Type | Conductor Material | Shield Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Polypropylene (PP) | Gray | 300 VDC | Low Capacitance | 4 | Computer | 304.8 m | 1000 ft | 24 AWG | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | Copper Annealed Tinned | Flexfoil® | Multi-Pair | 7 | 32 AWG | 1.194 mm | 0.047 in | 0.283 in | 7.19 mm | 100 % | ||
Prysmian Group | Polypropylene (PP) | Gray | 300 VDC | Low Capacitance | 4 | Computer | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 24 AWG | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | Copper Annealed Tinned | Multi-Pair | 7 | 32 AWG | 1.194 mm | 0.047 in | 0.283 in | 7.19 mm | 100 ft | 30.5 m |
