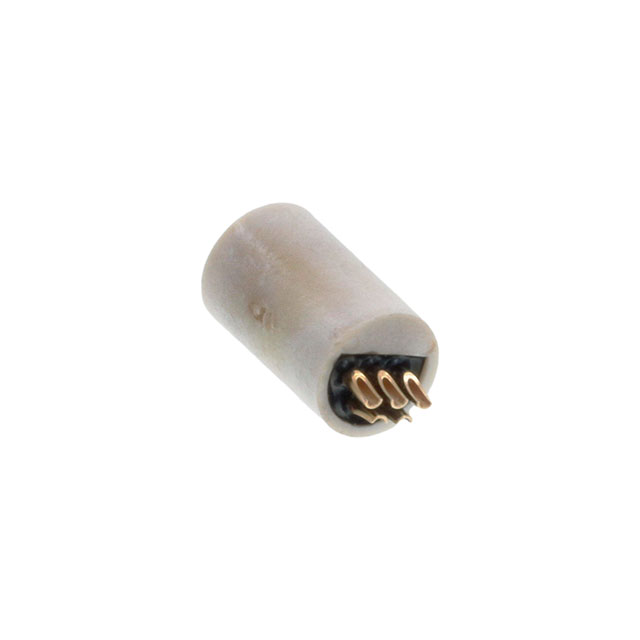

MCS-05 Series
Manufacturer: Omnetics
Beta
⌘K
CONN RCPT FMALE 5POS SOLDER CUP
| Part | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Material | Contact Finish - Mating | Fastening Type | Mounting Type | Shielding | Orientation | Primary Material | Current Rating (Amps) | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Copper Alloy | Liquid Crystal Polymer (LCP) | 50 µin | 1.27 µm | -55 C | 125 °C | Receptacle Female Sockets | Liquid Crystal Polymer (LCP) | Gold | Push-Pull | Free Hanging (In-Line) | Unshielded | Keyed | Plastic | 3 A | 5 | Natural |
