ISO3086T Series

20-Mbps full-duplex 2.5-kVrms isolated RS-485/RS-422 transceiver with integrated transformer driver

Catalog

20-Mbps full-duplex 2.5-kVrms isolated RS-485/RS-422 transceiver with integrated transformer driver

Part	Supplied Contents	Type	Function	Utilized IC / Part	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Protocol	Data Rate	Receiver Hysteresis	Duplex	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case [x]	Package / Case	Package / Case [y]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]

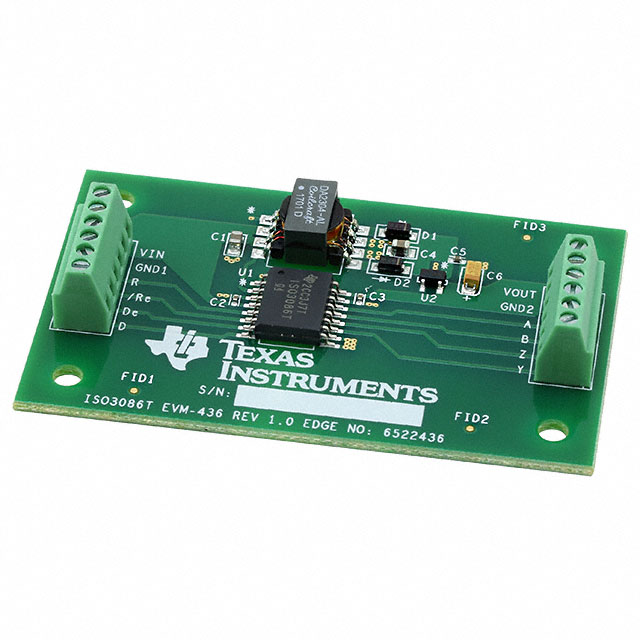

Texas Instruments ISO3086TEVM-436	Board(s)	Interface	RS-485 Transceiver	ISO3086T
Texas Instruments ISO3086TDW		Transceiver Isolated			2	2	RS422 RS485	20 Mbps	30 mV	Full	85 °C	-40 °C	Surface Mount	0.295 in	16-SOIC	7.5 mm	16-SOIC	3.15 V 4.5 V	5.5 V

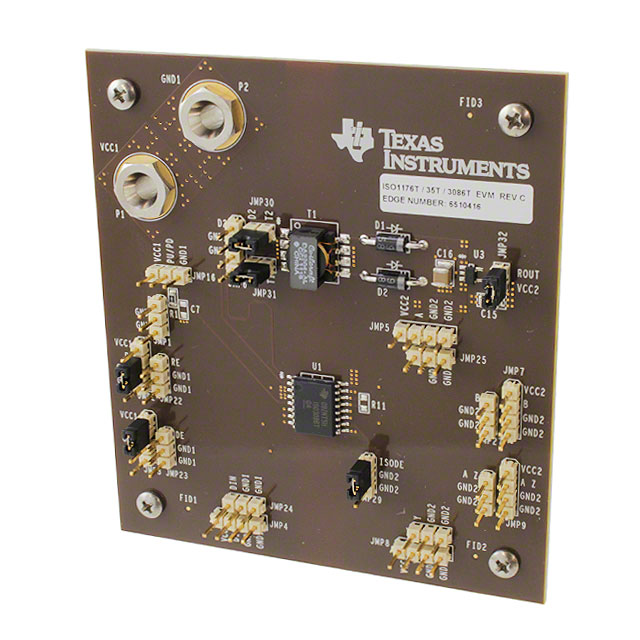

Texas Instruments ISO3086TEVM	Board(s)	Interface	RS-485 Transceiver	ISO3086T
Texas Instruments ISO3086DW		Transceiver Isolated			2	2	RS422 RS485	20 Mbps	30 mV	Full	85 °C	-40 °C	Surface Mount	0.295 in	16-SOIC	7.5 mm	16-SOIC	3.15 V 4.5 V	5.5 V

Catalog

20-Mbps full-duplex 2.5-kVrms isolated RS-485/RS-422 transceiver with integrated transformer driver

Key Features

• Meets or exceeds TIA/EIA-485-ASignaling rate up to 20 Mbps1/8 unit load – up to 256 nodes on a busThermal shutdown protectionTypical efficiency > 60% (I LOAD = 100 mA) - seeSLUU469Low bus capacitance 7 pF (typical)50-kV/µs typical transient immunityFail-safe receiver for bus open, short, idleLogic inputs are 5 V tolerantBus-pin ESD protection11-kV HBM between bus-pins and GND26-kV HBM between bus-pins and GND1Safety and regulatory approvals4242 V PK basic insulation per DIN EN IEC 60747-17 (VDE 0884-17)2500 V RMS isolation for 1 minute per UL 1577CSA component acceptance notice 5A, IEC 60950-1 and IEC 61010-1 standardsMeets or exceeds TIA/EIA-485-ASignaling rate up to 20 Mbps1/8 unit load – up to 256 nodes on a busThermal shutdown protectionTypical efficiency > 60% (I LOAD = 100 mA) - seeSLUU469Low bus capacitance 7 pF (typical)50-kV/µs typical transient immunityFail-safe receiver for bus open, short, idleLogic inputs are 5 V tolerantBus-pin ESD protection11-kV HBM between bus-pins and GND26-kV HBM between bus-pins and GND1Safety and regulatory approvals4242 V PK basic insulation per DIN EN IEC 60747-17 (VDE 0884-17)2500 V RMS isolation for 1 minute per UL 1577CSA component acceptance notice 5A, IEC 60950-1 and IEC 61010-1 standards

Description

The ISO3086T is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer. The device is a full-duplex differential line transceiver for RS-485 and RS-422 applications that can easily be configured for half-duplex operation by connecting pin 11 to pin 14, and pin 12 to pin 13. These devices are ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 4242 V PK of isolation for 1 minute per VDE between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. These isolated devices can significantly increase protection and reduce the risk of damage to expensive control circuits. The ISO3086T is specified for use from –40°C to 85°C. The ISO3086T is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer. The device is a full-duplex differential line transceiver for RS-485 and RS-422 applications that can easily be configured for half-duplex operation by connecting pin 11 to pin 14, and pin 12 to pin 13. These devices are ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 4242 V PK of isolation for 1 minute per VDE between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. These isolated devices can significantly increase protection and reduce the risk of damage to expensive control circuits. The ISO3086T is specified for use from –40°C to 85°C.
