LF10WBJ Series
Manufacturer: Hirose Electric USA, Inc.
Beta
⌘K
SHIELDED SMALL WATERPROOF CONNECTOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Material Flammability Rating | Insert Material | Applications | Shielding | Current Rating (Amps) | Connector Type | Orientation | Fastening Type | Features | Ingress Protection | Primary Material | Shell Size - Insert | Contact Material | Contact Finish - Mating | Shell Finish | Mounting Type | Backshell Material, Plating | Voltage Rating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

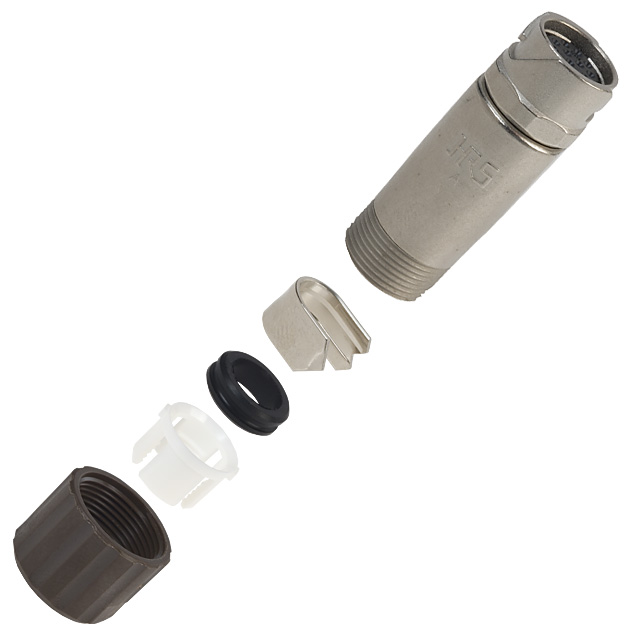

 Hirose Electric USA, Inc. | -25 °C | 85 °C | Zinc Alloy | UL94 V-0 | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | Shielded | 2 A | Female Sockets Jack | Keyed | Bayonet Lock | Backshell Clamp Strain Relief | IP67/IP68 - Dust Tight Waterproof | Metal | 10 | Phosphor Bronze | Gold | Nickel | Free Hanging (In-Line) | Nickel Zinc Alloy | 30 VAC 42 VDC | 12 | 0.203 Ám | 8 Áin | Brown Silver |

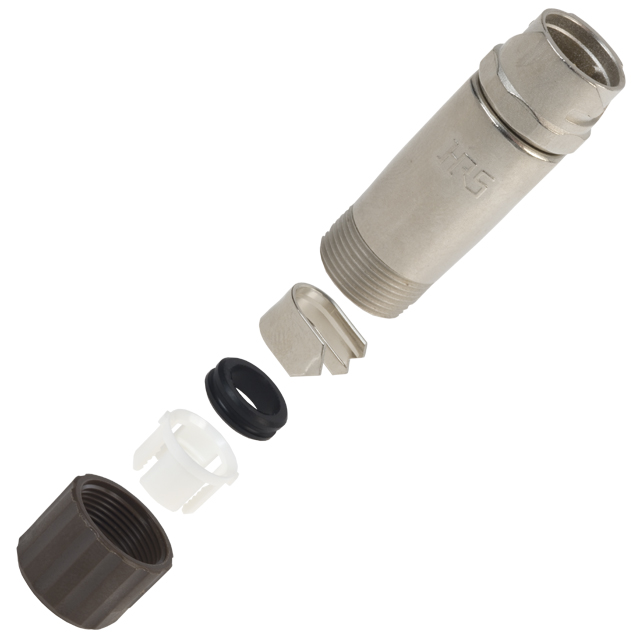

 Hirose Electric USA, Inc. | -25 °C | 85 °C | Zinc Alloy | UL94 V-0 | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | Shielded | 2 A | Jack Male Pins | Keyed | Bayonet Lock | Backshell Clamp Strain Relief | IP67/IP68 - Dust Tight Waterproof | Metal | 10 | Copper Alloy | Gold | Nickel | Free Hanging (In-Line) | Nickel Zinc Alloy | 30 VAC 42 VDC | 12 | 0.203 Ám | 8 Áin | Brown Silver |

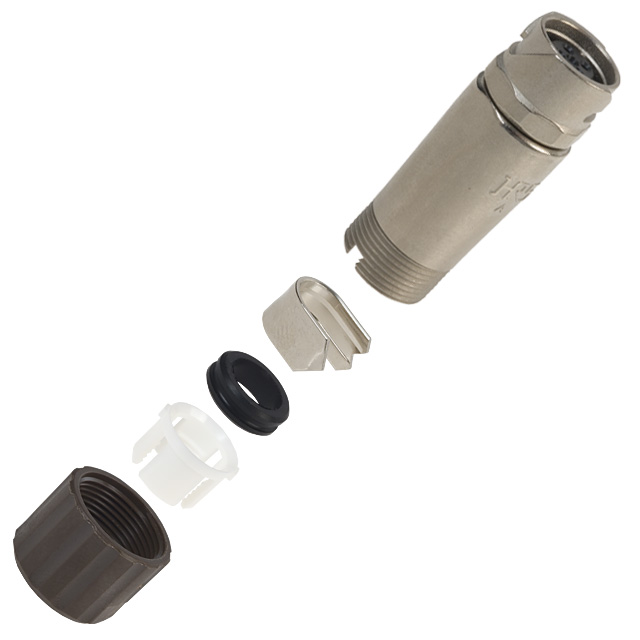

 Hirose Electric USA, Inc. | -25 °C | 85 °C | Zinc Alloy | UL94 V-0 | Polyphenylene Sulfide (PPS) | Industrial Telecommunications | Shielded | 10 A | Female Sockets Jack | Keyed | Bayonet Lock | Backshell Clamp Strain Relief | IP67/IP68 - Dust Tight Waterproof | Metal | 10 | Copper Alloy | Gold | Nickel | Free Hanging (In-Line) | Nickel Zinc Alloy | 125 VAC | 4 | 0.203 Ám | 8 Áin | Brown Silver |
