C1206 Series

Catalog

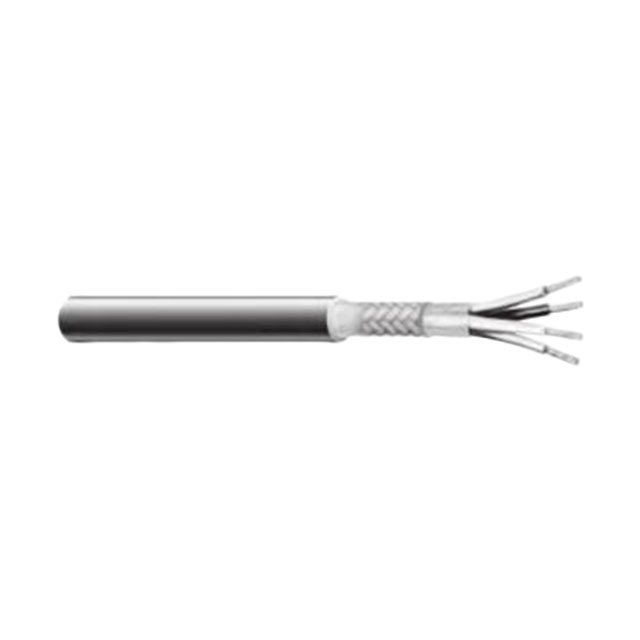

CABLE 6COND 18AWG BLK SHLD 500'

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Jacket (Insulation) Material	Conductor Material	Length	Length	Number of Conductors	Usage	Voltage	Jacket Color	Shield Coverage	Shield Material	Length [x]	Length [x]
Prysmian Group C1206.38.01	18 AWG	0.37 in	9.4 mm	Braid	41	34	-20 ░C	60 °C	0.035 in	0.889 mm	Rubber	Multi-Conductor	Carolprene	Copper Tinned	152.4 m	500 ft	6	Communication Control	300 VDC	Black
Prysmian Group C1206.41.01	18 AWG	0.37 in	9.4 mm	Braid	41	34	-25 °C	60 °C	0.035 in	0.889 mm	Rubber	Multi-Conductor	Carolprene	Copper Tinned	15.24 m 304.8 m	50 ft 1000 ft	6	Communication Control	300 VDC	Black	80 %	Copper Tinned	100 ft	30.5 m
Prysmian Group C1206.41.01	18 AWG	0.37 in	9.4 mm	Braid	41	34	-25 °C	60 °C	0.035 in	0.889 mm	Rubber	Multi-Conductor	Carolprene	Copper Tinned	15.24 m 304.8 m	50 ft 1000 ft	6	Communication Control	300 VDC	Black			100 ft	30.5 m
Prysmian Group C1206.38.01	18 AWG	0.37 in	9.4 mm	Braid	41	34	-20 ░C	60 °C	0.035 in	0.889 mm	Rubber	Multi-Conductor	Carolprene	Copper Tinned	152.4 m	500 ft	6	Communication Control	300 VDC	Black		Copper Tinned
