0.1 GHz to 24 GHz, Low Noise, Programmable Divider
Key Features
• Low noise floor: −153 dBc/Hz at 100 kHz offset
• Programmable frequency divider (N)N = 1, 2, 4, or 8
• N = 1, 2, 4, or 8
• Wide bandwidth: 0.1 GHz to 24 GHz
• Low current consumption: 81 mA in the N = 8 divide state
• HBM ESD sensitivity, Class 2 classification
• FICDM ESD sensitivity, Class C3 classification

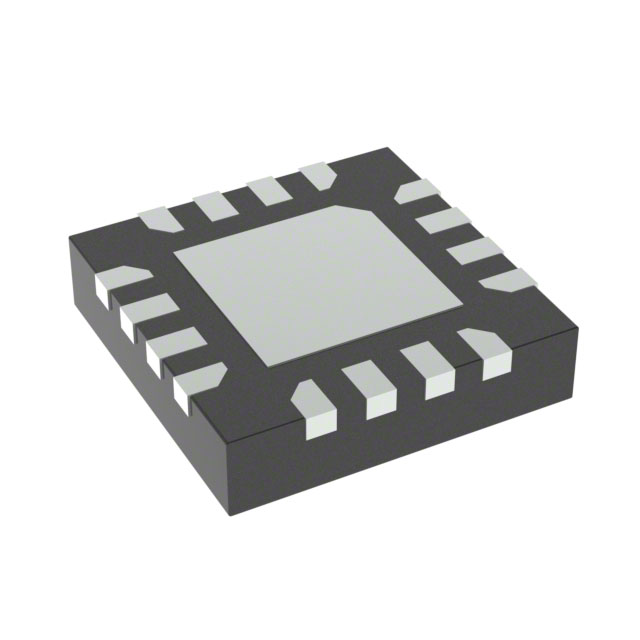

• 16-lead, 3 mm × 3 mm LFCSP package: 9 mm2
Description
AI
The HMC862A is a low noise, programmable frequency divider in a 3 mm × 3 mm, leadless, surface-mount package. The frequency divider, N, can be programmed to divide from 1, 2, 4, or 8 in the 0.1 GHz to 24 GHz input frequency range.The low phase noise, wide frequency range, and flexible division ratio make this device ideal for high performance and wideband communication systems.ApplicationsSatellite communication systemsPoint to point and point to multipoint radiosMilitary applicationsTest equipment
