1555 Series

Catalog

BOX PC GRAY 4.72"L X 4.72"W

Part	Material	Area (L x W)	Area (L x W)	Container Type	Material Flammability Rating	Color	Height [z]	Height [z]	Thickness	Thickness	Features	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Weight	Weight	Height	Height	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]

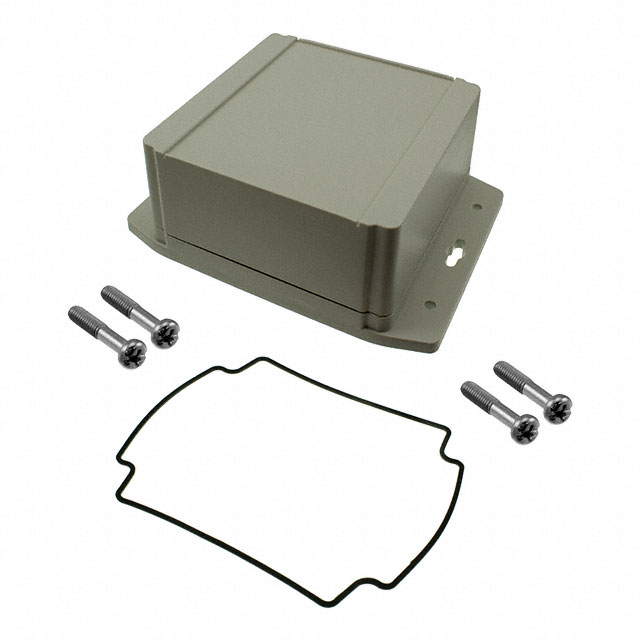

Hammond Manufacturing 1555NF42GY	ABS Polycarbonate	22.3 in²	144 cm²	Box	UL94 HB	Gray	62 mm	2.441 in	0.157 in	4 mm	Mounting Flange PCB Supports Watertight	12 13 4X IP67 NEMA 4	4.723 in	119.96 mm	119.96 mm	4.723 in	Cover Included
Hammond Manufacturing 1555F2GY	Polycarbonate	16.7 in²	108 cm²	Box	UL94 5VA UL94 V-0	Gray	60 mm	2.362 in	0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 "	89.99 mm	120 mm	4.724 in	Cover Included	181.44 g	0.4 lb

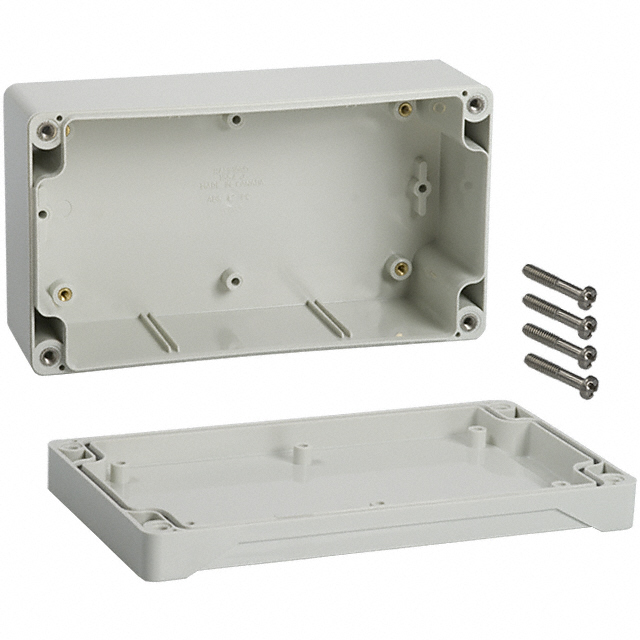

Hammond Manufacturing 1555JGY	ABS Polycarbonate	22.3 in²	144 cm²	Box	UL94 HB	Gray	60 mm	2.362 in	0.128 in	3.25 mm	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	3.543 "	89.99 mm	159.99 mm	6.299 "	Cover Included
Hammond Manufacturing 1555G2GY	Polycarbonate	16.7 in²	108 cm²	Box	UL94 5VA UL94 V-0	Gray			0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 "	89.99 mm	120 mm	4.724 in	Cover Included	235.87 g	0.52 lb	3.15 in	80 mm

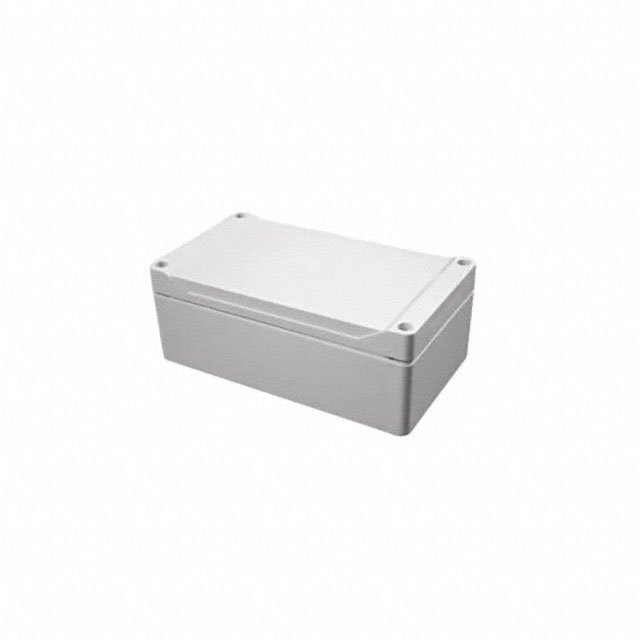

Hammond Manufacturing 1555YAGY	ABS Polycarbonate	112 in²	720 cm²	Box	UL94-HB	Gray	119.89 mm	4.72 in	0.16 "	4.06 mm		IP66	9.45 in	240.03 mm	299.97 mm	11.81 in	Cover Included Hand Held
Hammond Manufacturing 1555D2GY	Polycarbonate	12.1 in²	78 cm²	Box	UL94 5VA UL94 V-0	Gray	60 mm	2.362 in	0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	2.559 "	65 mm	120 mm	4.724 in	Cover Included	68.04 g	0.15 lb

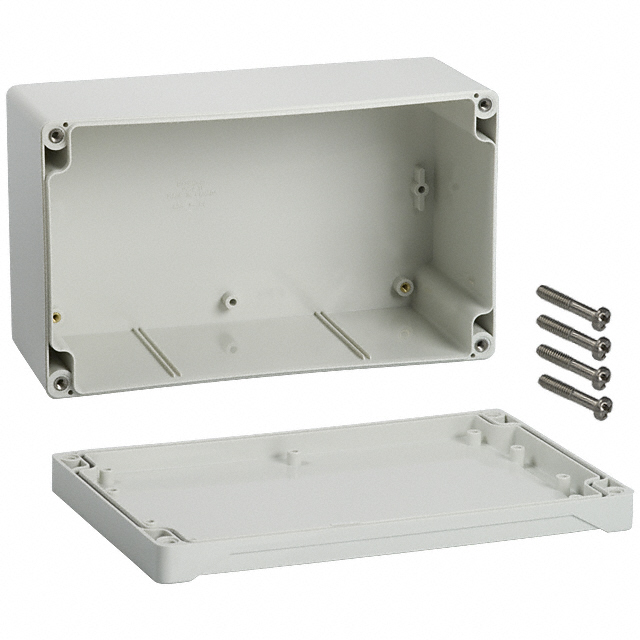

Hammond Manufacturing 1555UGY	ABS Polycarbonate		37.2 in²	Box	UL94 HB	Gray	90 mm	3.543 in	0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	4.724 in	119.99 mm	200 mm	7.874 in	Cover Included					240 cm²
Hammond Manufacturing 1555K2GY	Polycarbonate	22.3 in²	144 cm²	Box	UL94 5VA UL94 V-0	Gray	90 mm	3.543 in	0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 "	89.99 mm	159.99 mm	6.299 "	Cover Included

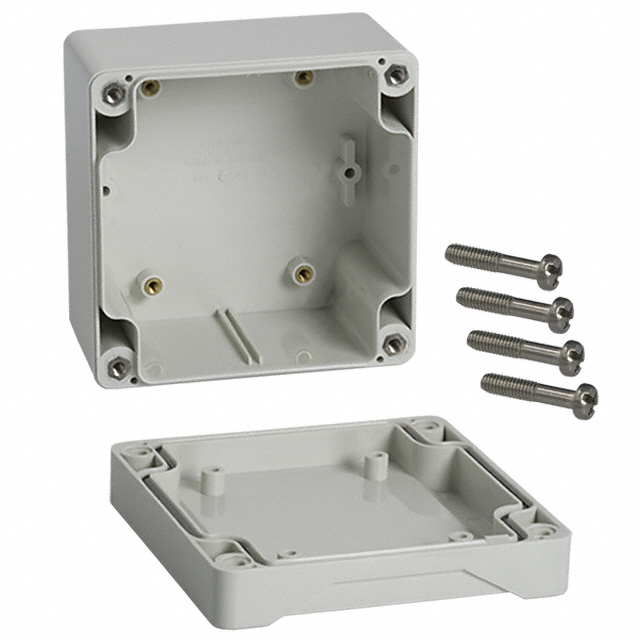

Hammond Manufacturing 1555EGY	ABS Polycarbonate			Box	UL94 HB	Gray	60 mm	2.362 in	0.118 in	3 mm	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	3.543 "	89.99 mm	89.99 mm	3.543 in	Cover Included						81 cm²	12.6 in²

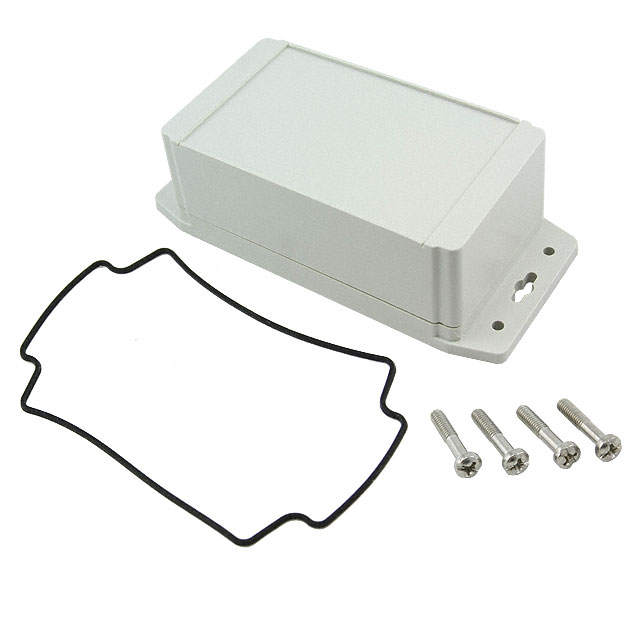

Hammond Manufacturing 1555JF42GY	ABS Polycarbonate			Box	UL94 HB	Gray	62 mm	2.441 in	0.157 in	4 mm	Mounting Flange PCB Supports Watertight	12 13 4X IP67 NEMA 4	3.574 "	90.78 mm	159.94 mm	6.297 "	Cover Included								22.4 in²	145 cm²
