EVAL6474 Series

Stepper motor driver mounting the L6474

Catalog

Stepper motor driver mounting the L6474

Part	Supplied Contents	Function	Embedded	Utilized IC / Part	Contents	Primary Attributes	Secondary Attributes	Type

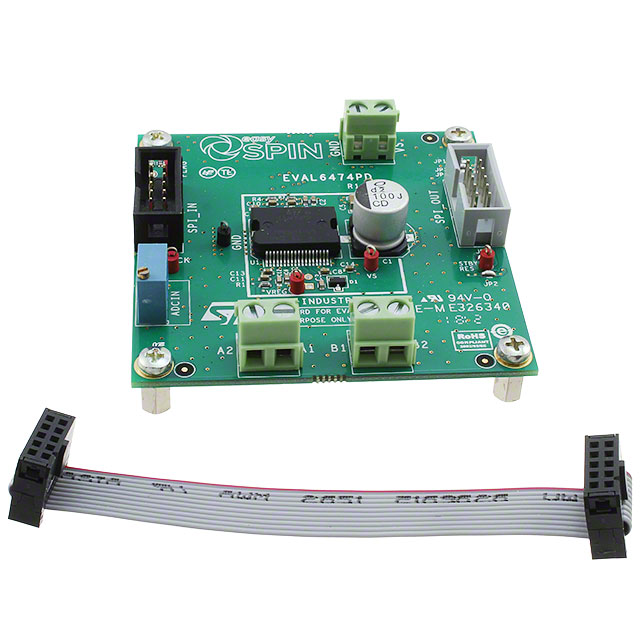

STMicroelectronics EVAL6474PD	Board(s)	Motor Controller/Driver		L6474	Board(s)	Dual Full-Bridge (H-Bridge) Driver	Over Current Temperature Protection	Power Management
STMicroelectronics EVAL6474H	Board(s)	Motor Controller/Driver		L6474	Board(s)	Dual Full-Bridge (H-Bridge) Driver	Over Current Temperature Protection	Power Management

Catalog

Stepper motor driver mounting the L6474

Description

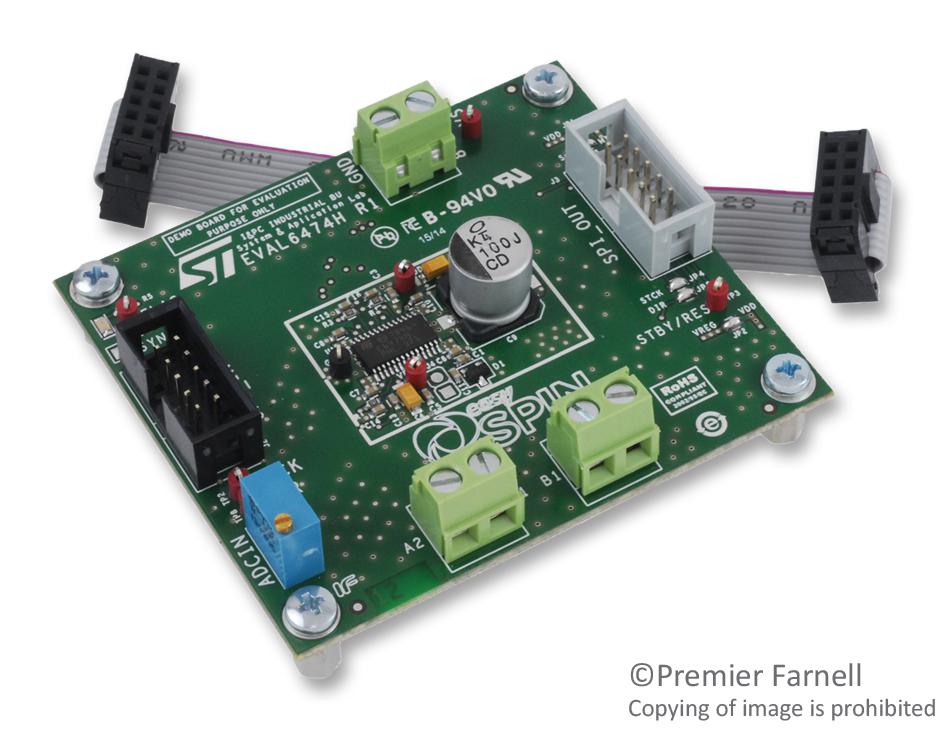

The EVAL6474H demonstration board is a microstepping motor driver. In combination with the STEVAL-PCC009V2 communication board and the SPIN evaluation software, the board allows the user to investigate all the features of the L6474 device. The EVAL6474H supports the daisy chain configuration making it suitable for the evaluation of the L6474 in multi motor applications.
