LF13WBLP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

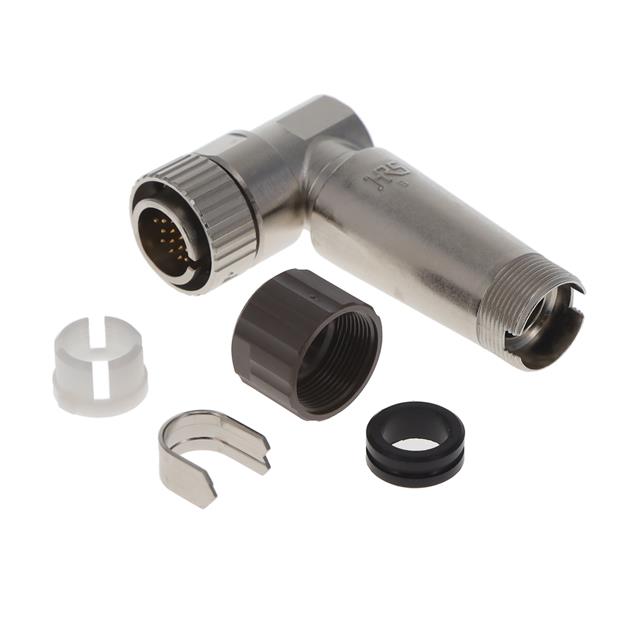

CONN PLUG MALE
| Part | Shell Size - Insert [custom] | Primary Material | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Ingress Protection | Applications | Number of Positions | Material Flammability Rating | Voltage Rating | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Insert Material | Shell Finish | Features | Orientation | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 13 | Metal | Gold | Bayonet Lock | 2 A | IP67/IP68 | Industrial Telecommunications | 20 | UL94 V-0 | 30 VAC 42 VDC | Copper Alloy | 7.87 Áin | 0.2 Ám | Plug Male Pins | Polyphenylene Sulfide (PPS) | Nickel | Backshell Cable Clamp Coupling Nut | Keyed | Solder | 85 °C | -25 °C | Silver | Free Hanging (In-Line) Right Angle | Shielded |
