UUL Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 50VOLTS 4.7UF AEC-Q200

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Tolerance	Polarization	Package / Case	Lifetime @ Temp.	Mounting Type	Capacitance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

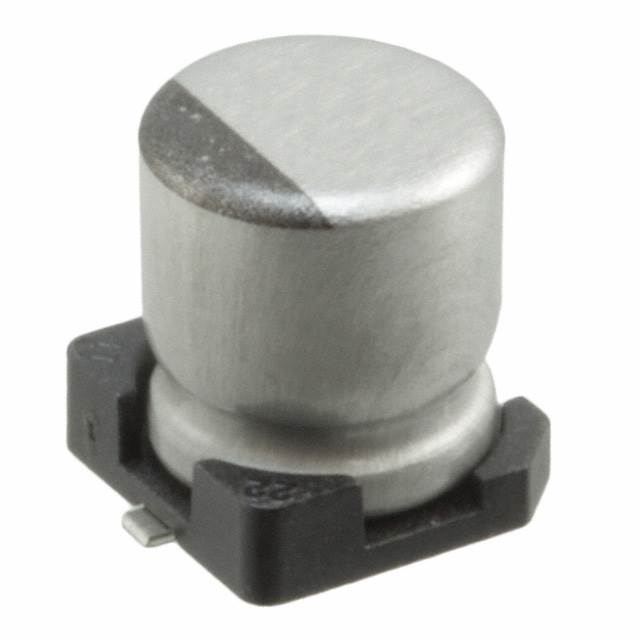

Nichicon UUL1H4R7MCL1GS	-40 C	105 ░C	AEC-Q200	0.197 in	5 mm	General Purpose	20 %	Polar	Radial Can - SMD	5000 Hrs	Surface Mount	4.7 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	19 mA	50 VDC	28.5 mA	6.1 mm	0.24 "

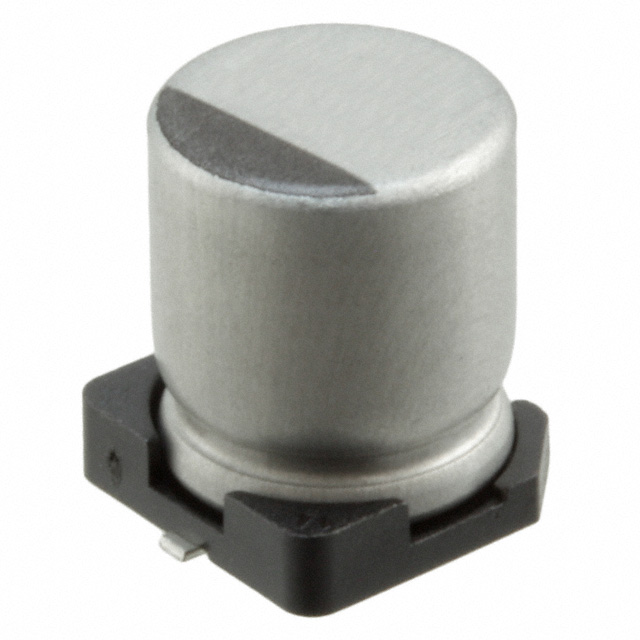

Nichicon UUL1V330MCL1GS	-40 C	105 ░C	AEC-Q200	0.248 "	6.3 mm	General Purpose	20 %	Polar	Radial Can - SMD	5000 Hrs	Surface Mount	33 ÁF	6.6 mm	6.6 mm	57 mA	35 V	85.5 mA			0.26 in	0.26 in	8 mm	0.315 in
Nichicon UUL1E100MCL1GS	-40 C	105 ░C	AEC-Q200	0.197 in	5 mm	General Purpose	20 %	Polar	Radial Can - SMD	5000 Hrs	Surface Mount	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	25 mA	25 VDC	37.5 mA	6.1 mm	0.24 "
