1981837 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

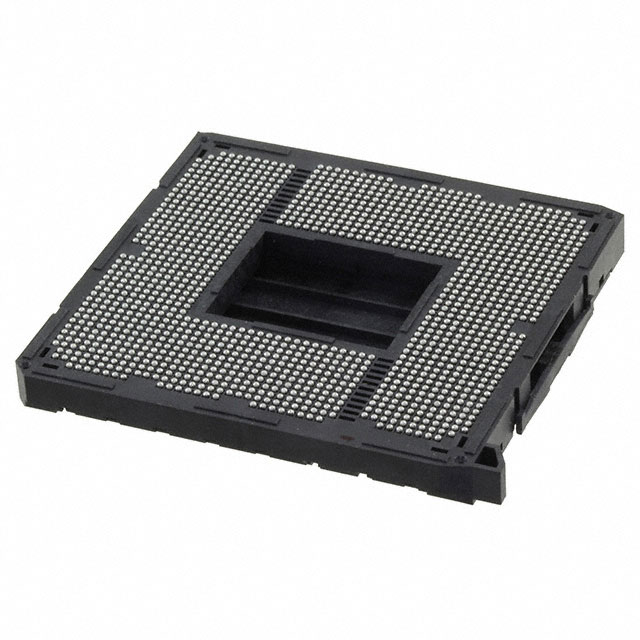

CONN SOCKET LGA 1366POS GOLD
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Pitch - Post | Pitch - Post | Contact Finish - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Material Flammability Rating | Type | Mounting Type | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Housing Material | Features | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 15 µin | 0.38 µm | Solder | 0.04 in | 1.01 mm | Gold | 1366 | 41 | 32 | UL94 V-0 | LGA | Surface Mount | Copper Alloy | 1.02 mm | 0.04 in | Thermoplastic | Open Frame | Copper Alloy |
TE Connectivity Raychem Cable Protection | 30 Áin | 0.76 Ám | Solder | 0.04 in | 1.01 mm | Gold | 1366 | 41 | 32 | UL94 V-0 | LGA | Surface Mount | Copper Alloy | 1.02 mm | 0.04 in | Thermoplastic | Open Frame |
