PHB Series

Manufacturer: Nichicon

Catalog

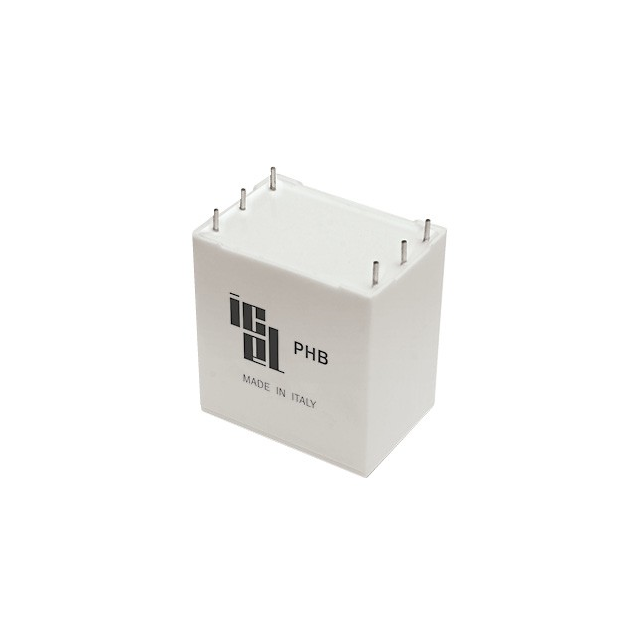

FILM CAPACITORS BOXED. RADIAL 11 X 20 X 32

Part	Applications	Mounting Type	Tolerance	Voltage Rating - DC	Capacitance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)
Nichicon PHB1603680KHS	High Frequency Switching	Through Hole	10 %	600 V	0.68 µF	0.886 in	22.5 mm	350 V	0.669 "	17 mm	85 °C	-40 C	1.043 in	0.335 in	8.5 mm	26.5 mm	PC Pins	Polypropylene (PP) Metallized	Radial
Nichicon PHB1404300KHSD	High Frequency Switching	Through Hole	10 %	400 V	3 µF	1.083 in	27.5 mm	275 V			85 °C	-40 C	1.26 in	0.709 in	18 mm	32 mm	PC Pins	Polypropylene (PP) Metallized	Radial	1.299 in	33 mm	2.9 mOhms
Nichicon PHB1854600KRS	High Frequency Switching	Through Hole	10 %	850 V	6 µF	2.067 in	52.5 mm	500 V		50 mm	85 °C	-40 C			1.378 in	2.264 in	PC Pins	Polypropylene (PP) Metallized	Radial			2.6 mOhm	1.969 in	57.5 mm	35 mm
Nichicon PHB1854300KJST	High Frequency Switching	Through Hole	10 %	850 V	3 µF	1.476 in	37.5 mm	500 V	1.772 "		85 °C	-40 C	1.673 "	1.181 in	30 mm	42.5 mm	PC Pins	Polypropylene (PP) Metallized	Radial - 6 Leads	45 mm		1.7 mOhm
Nichicon PHB1404400KHS	High Frequency Switching	Through Hole	10 %	400 V	4 µF	1.476 in	37.5 mm	275 V	1.319 in		85 °C	-40 C	1.673 "	0.866 in	22 mm	42.5 mm	PC Pins	Polypropylene (PP) Metallized	Radial			3.2 mOhm				33.5 mm
