291 Series

Catalog

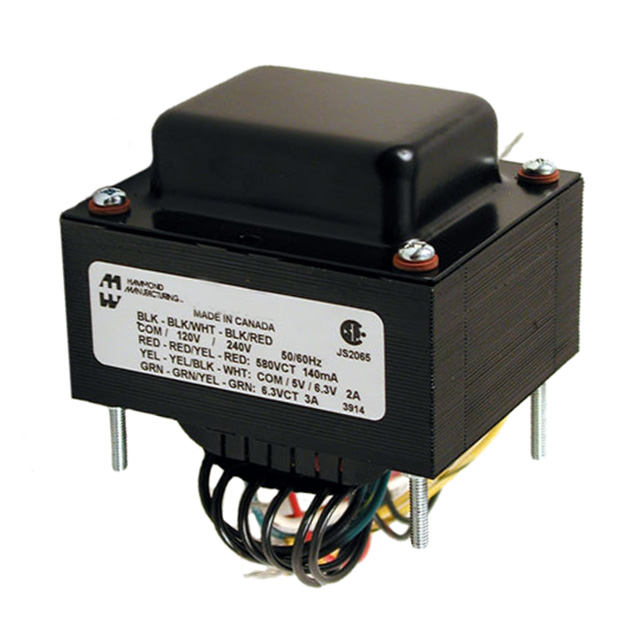

POWER TRANSFORMER 1:5.82 3000VAC 9 TERMINAL SCREW/WIRE LEAD CHASSIS MOUNT

Part	Type	Voltage - Primary	Secondary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Mounting Type	Voltage - Secondary (Full Load)	Primary Winding(s)	Weight	Weight	Current - Output (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Voltage - Isolation
Hammond Manufacturing 291AEX	Laminated Core	100 V 110 V 120 V 210 V 220 V 230 V 240 V	Triple	2.5 "	71.55 mm	Wire Leads	Chassis Mount	5 V 6.3 V 650 V	Dual Multiple Taps	1.4 kg	3 lb	2.25 A 3 A 100 mA	77.8 mm
Hammond Manufacturing 291JEX		120 V 240 V	Triple	79.38 mm	112.67 mm	Wire Leads	Chassis Mount	6.65 V 60 V 320 V	Dual			2.5 A 20 mA 500 mA		96.42 mm	2000 Vrms
Hammond Manufacturing 291AX	Laminated Core	120 V	Triple	2.5 "	71.55 mm	Wire Leads	Chassis Mount	5 V 6.3 V 650 V	Single	1.4 kg	3 lb	2 A 81 mA	77.8 mm
