C0650 Series
Manufacturer: Prysmian Group
Beta
⌘K

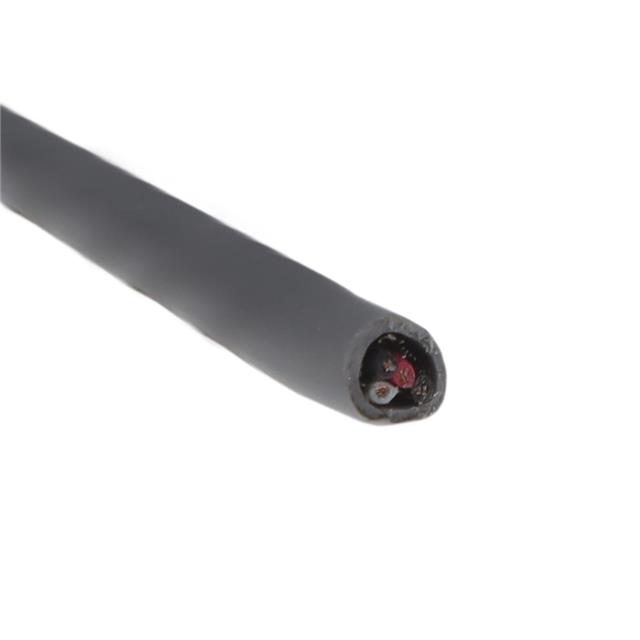

MULTI-PAIR 4COND 22AWG GRAY 50'
| Part | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Number of Conductors | Shield Coverage | Usage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Cable Type | Shield Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 ft | 30.5 m | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | Copper Flexfoil® Tinned | 4 | 65 % 100 % | Computer | ASTM B-33 | 0.229 in | 5.82 mm | Poly-Vinyl Chloride (PVC) | Gray | Multi-Pair | Braid Foil | 15.24 m 304.8 m | 50 ft 1000 ft | 30 AWG | 7 | 22 AWG | Copper Annealed Tinned |
