300 Series

Catalog

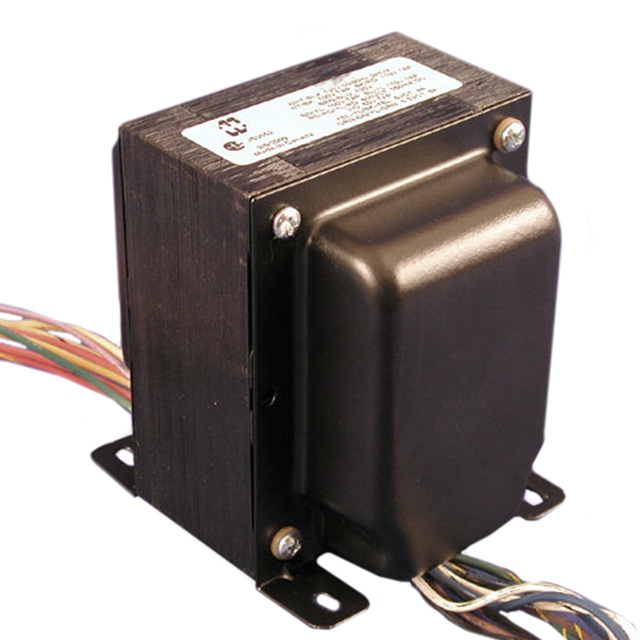

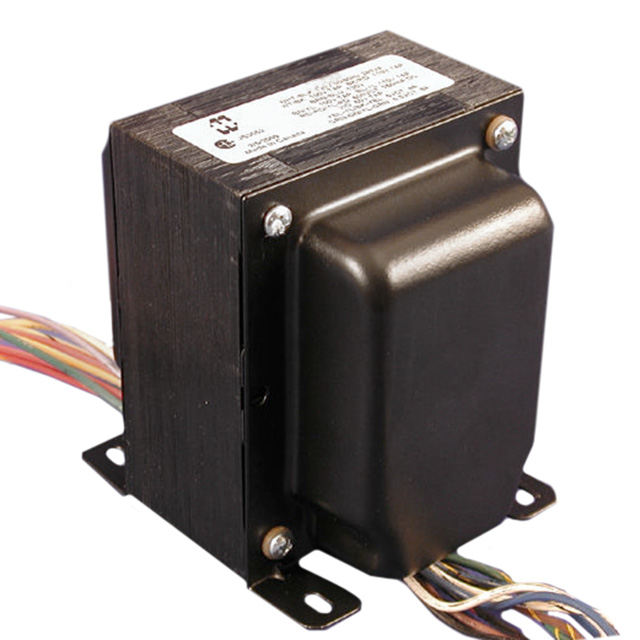

POWER TRANSFORMERS TRANSFORMER, HIGH VOLTAGE & FILAMENT, 125VA, 700V C.T. @ 127MA., 300 SERIES

Part	Power - Max [Max]	Type	Voltage - Secondary (Full Load)	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Primary Winding(s)	Height - Seated (Max) [Max] [z]	Termination Style	Mounting Type	Secondary Winding(s)	Voltage - Isolation	Voltage - Primary	Current - Output (Max) [Max]	Current - Output (Max)	Weight [custom]	Weight [custom]
Hammond Manufacturing 373X	125 VA	Laminated Core	5 V 6.3 V 700 V	79.5 mm	3.75 "	5.7 lbs	2.6 kg	Dual Multiple Taps	96.77 mm	Wire Leads	Chassis Mount	Triple	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V	2 A 4 A 127 mA
Hammond Manufacturing 373HX	369 VA	Laminated Core	5 V 6.3 V 700 V	142.14 mm	111.13 mm	18 lbs	8.2 kg	Dual Multiple Taps	134.62 mm	Wire Leads	Chassis Mount	Four	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		6 A 9 A 403 mA
Hammond Manufacturing 370EX	119 VA	Laminated Core	5 V 6.3 V 550 V	3.75 "	79.5 mm			Dual Multiple Taps	96.77 mm	Wire Leads	Chassis Mount	Four	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		3 A 4 A 144 mA	2.3 kg	5 lbs

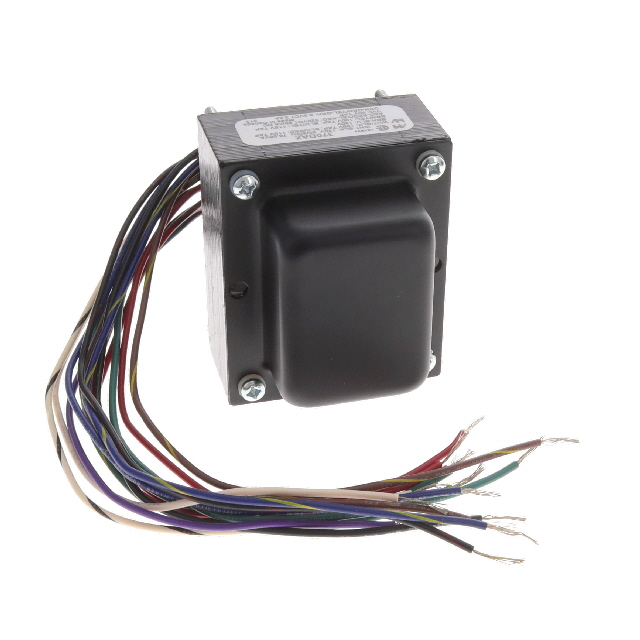

Hammond Manufacturing 370DAZ	76 VA	Laminated Core	6.3 V 520 V	71.37 mm	2.25 in	2.7 lbs	1.2 kg	Dual Multiple Taps	88.9 mm	Wire Leads	Chassis Mount	Four	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		3.5 A 104 mA
Hammond Manufacturing 372BX	98 VA	Laminated Core	5 V 6.3 V 600 V	79.5 mm	88.9 mm	3.5 lbs	1.6 kg	Dual Multiple Taps	96.77 mm	Wire Leads	Chassis Mount	Triple	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		2 A 3 A 115 mA
Hammond Manufacturing 373JX	403 VA	Laminated Core	5 V 6.3 V 700 V	167.54 mm	134.14 mm			Dual Multiple Taps	161.54 mm	Wire Leads	Chassis Mount	Four	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		6 A 12 A 863 mA	14.1 kg	31 lbs
Hammond Manufacturing 363CX	119 VA	Laminated Core		79.5 mm	3.75 "	5.7 lbs	2.6 kg	Dual Multiple Taps	96.77 mm	Wire Leads	Chassis Mount	Dual	2000 Vrms	100 V 110 V 120 V 200 V 220 V 240 V		3 A 288 mA
