MIC23158 Series

Catalog

EVAL BOARD 2A BUCK REG

Part	Total Output Count	Output Type	Non-Isolated Output Count	Supplied Contents	Board Type	Utilized IC / Part	Regulator Topology	Contents	Voltage - Output	Current - Output (Max)	Current - Output (Min)	Main Purpose	Frequency - Switching	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Output (Max)	Number of Outputs	Voltage - Input (Max)	Function	Package Name	Package Length	Package Width	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output	Package / Case	Output Configuration	Synchronous Rectifier	Voltage - Output (Min/Fixed)	Topology	Voltage - Input (Min)
Microchip Technology MIC23158YML-EV	2	Non-Isolated	2 count	Board(s)	Fully Populated	MIC23158	Buck	Board	1.5 V 1.8 V	2 A	2 A	DC/DC Step Down	3 MHz	2.7 V	5.5 V

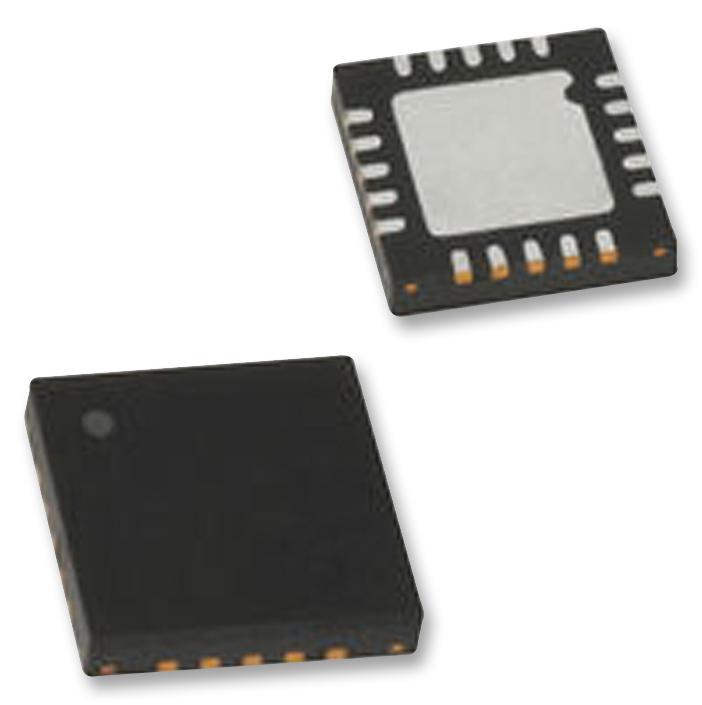

Microchip Technology MIC23158YML-T5		Adjustable											3 MHz			3.3 V	2	5.5 V	Step-Down	20-MLF®	3 mm	4 mm	Surface Mount	125 °C	-40 °C	2 A	20-MLF® 20-VFQFN Exposed Pad	Positive	Yes	1 V	Buck	2.7 V
