Micro-One Wire-to-Board Header, Right Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Through Hole, 4 Circuits, Tin-Bismuth Plating, Black
Micro-One Wire-to-Board Header, Right Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Through Hole, 4 Circuits, Tin-Bismuth Plating, Black
Micro-One Wire-to-Board Header, Right Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Through Hole, 4 Circuits, Tin-Bismuth Plating, Black
| Part | Insulation Material | Connector Type | Pitch - Mating | Pitch - Mating | Style | Current Rating (Amps) | Mounting Type | Features | Number of Rows | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Insulation Height | Insulation Height | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Fastening Type | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Voltage Rating | Number of Positions | Contact Shape | Contact Type | Insulation Color | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Liquid Crystal Polymer (LCP) | Header | 0.079 " | 2 mm | Board to Cable/Wire | Varies by Wire Gauge | Right Angle Through Hole | Board Guide | 1 | Tin | 0.114 in | 2.9 mm | Solder | 0.28 in | 7.1 mm | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Brass | -40 C | 105 ░C | All | 250 V | 4 | Square | Male Pin | Black | Shrouded - 4 Wall |
 Molex | Liquid Crystal Polymer (LCP) | Header | 0.079 " | 2 mm | Board to Cable/Wire | Varies by Wire Gauge | Right Angle Through Hole | Board Guide | 1 | Tin | 0.114 in | 2.9 mm | Solder | 0.28 in | 7.1 mm | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Brass | -40 C | 105 ░C | All | 250 V | 6 | Square | Male Pin | Black | Shrouded - 4 Wall |
 Molex | Liquid Crystal Polymer (LCP) | Header | 0.079 " | 2 mm | Board to Cable/Wire | Varies by Wire Gauge | Right Angle Through Hole | Board Guide | 1 | Tin | 0.114 in | 2.9 mm | Solder | 0.28 in | 7.1 mm | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Brass | -40 C | 105 ░C | All | 250 VAC | 2 | Square | Male Pin | Black | Shrouded - 4 Wall |

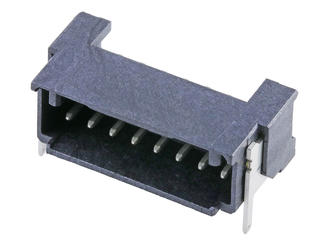

 Molex | Liquid Crystal Polymer (LCP) | Header | 0.079 " | 2 mm | Board to Cable/Wire | Varies by Wire Gauge | Right Angle Through Hole | Board Guide | 1 | Tin | 0.114 in | 2.9 mm | Solder | 0.28 in | 7.1 mm | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Brass | -40 C | 105 ░C | All | 250 VAC | 8 | Square | Male Pin | Black | Shrouded - 4 Wall |
 Molex | Liquid Crystal Polymer (LCP) | Header | 0.079 " | 2 mm | Board to Cable/Wire | Varies by Wire Gauge | Right Angle Through Hole | Board Guide | 1 | Tin | 0.114 in | 2.9 mm | Solder | 0.28 in | 7.1 mm | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Brass | -40 C | 105 ░C | All | 250 V | 5 | Square | Male Pin | Black | Shrouded - 4 Wall |
