Mid range, low power, with hard RISC-V based
Key Features
• FPGA Fabric* 93K logic elements (4-input LUT + DFF)
• * 292 Math blocks (18x18 MACC)
• * 4 SerDes lanes of 12.7 Gbps
•
• Microprocessor Subsystem
•
• Processor* 1x 64-bit RV64IMAC monitor/boot core
• * 4x 64-bit RV64GC Application cores
• * Fmax of 667 MHz (–40 °C to 100 °C Tj),
• * 3.125 CoreMarks/MHz, 1.714 DMIPS/MHz
•
• Storage* MMC 5.1 SD/SDIO
• * 1 Quad SPI flash controller
• * 128 KB eNVM
• * 56KB sNVM
•
• Memory Interfaces* 36-bit DDR4/DDR3/LPDDR4/LPDDR3 memory controller with SECDED
•
• Communication Interfaces* 2x GigE MACs, USB 2.0 OTG, 5x multi-mode UARTs, 2x SPI, 2x I2C, 2x CAN 2.0 Controllers.
• * 2x PCIe Gen2 End Points/Root Ports
Description
AI

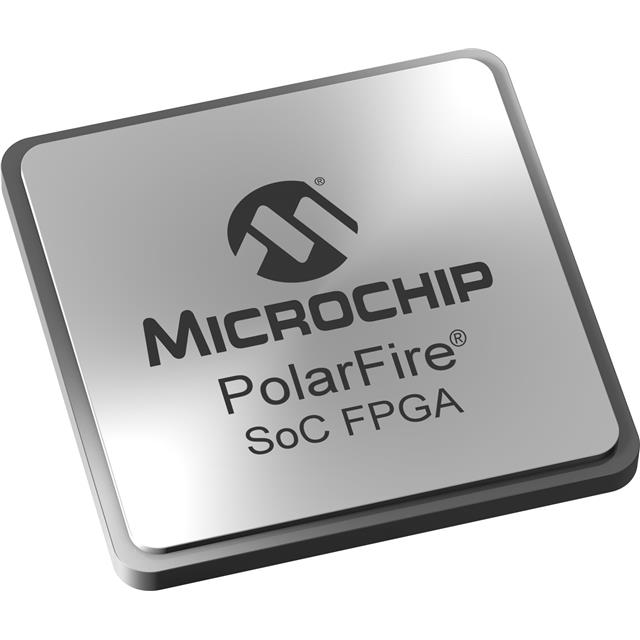

The PolarFire® SoC FPGA is built on the award-winning PolarFire FPGA architecture and is the first SoC FPGA with a deterministic, coherent RISC-V CPU cluster and a deterministic L2 memory subsystem enabling Linux and real-time applications. The family delivers up to 50% lower power than alternative FPGAs and spans from 23k to 461k logic elements and features 12.7G transceivers.
