18-6823 Series

Catalog

CONN IC DIP SOCKET 18POS GOLD

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Post	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Type [custom]	Type [custom]	Type	Housing Material	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]

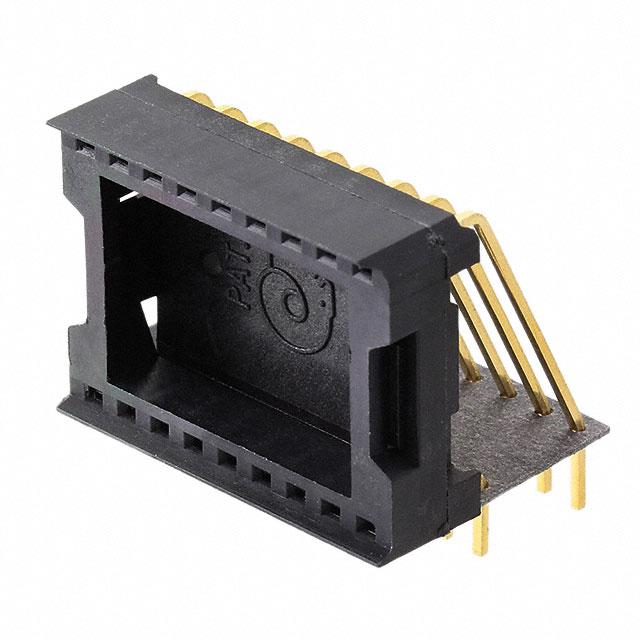

Aries Electronics 18-6823-90	UL94 V-0	0.145 in	3.68 mm	1.5 A	Gold	Solder	10 Áin	0.25 çm	Phosphor Bronze	Phosphor Bronze	0.25 µm	10 µin	Closed Frame	18	0.1 "	2.54 mm	Gold	15.24 mm	0.6 in	DIP	Polyamide (PA46) Nylon 4/6	0.1 in	2.54 mm
Aries Electronics 18-6823-90T	UL94 V-0	0.145 in	3.68 mm	1.5 A	Tin	Solder	200 µin	5.08 µm	Phosphor Bronze	Phosphor Bronze	5.08 µm	200 µin	Closed Frame	18	0.1 "	2.54 mm		15.24 mm	0.6 in	DIP	Polyamide (PA46) Nylon 4/6	0.1 in	2.54 mm	-55 C	105 ░C
