DF15C(4.2) Series

Catalog

CONN HDR 20POS SMD GOLD

Part	Number of Rows [custom]	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd DF15C(4.2)-20DP-0.65V(56)	2	Header Outer Shroud Contacts	Gold	4.2 mm	0.165 in	Surface Mount	0.65 mm	0.026 in	20	5 mm 6 mm	0.1 Ám	4 Áin

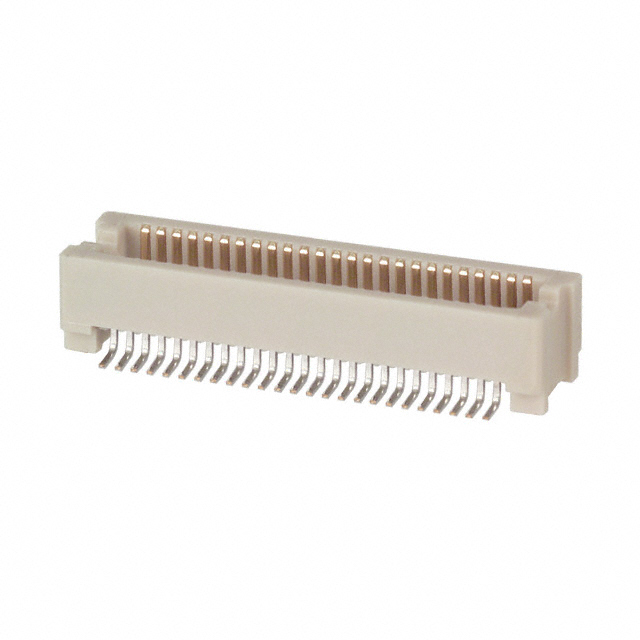

Hirose Electric Co Ltd DF15C(4.2)-50DP-0.65V(56)	2	Header Outer Shroud Contacts	Gold	4.2 mm	0.165 in	Surface Mount	0.65 mm	0.026 in	50	5 mm 6 mm	0.1 Ám	4 Áin

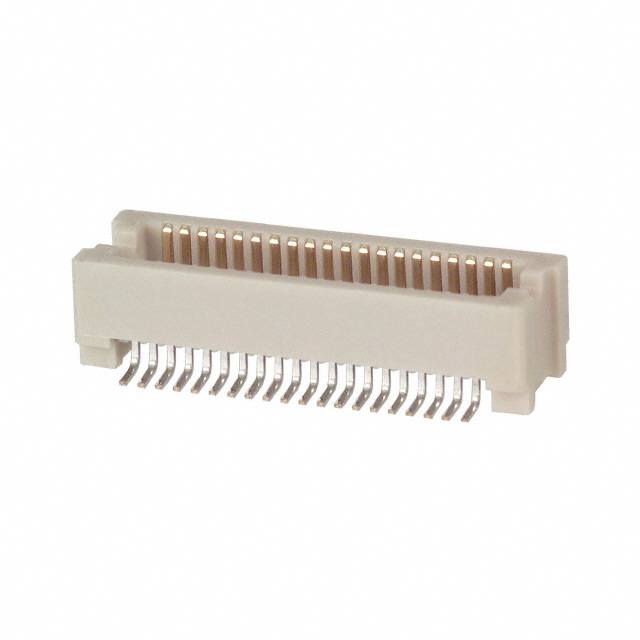

Hirose Electric Co Ltd DF15C(4.2)-40DP-0.65V(50)	2	Header Outer Shroud Contacts	Gold	4.2 mm	0.165 in	Surface Mount	0.65 mm	0.026 in	40	5 mm 6 mm
Hirose Electric Co Ltd DF15C(4.2)-40DP-0.65V(56)	2	Header Outer Shroud Contacts	Gold	4.2 mm	0.165 in	Surface Mount	0.65 mm	0.026 in	40	5 mm 6 mm	0.1 Ám	4 Áin
