HPLC Series

Manufacturer: Wakefield Thermal Solutions

Catalog

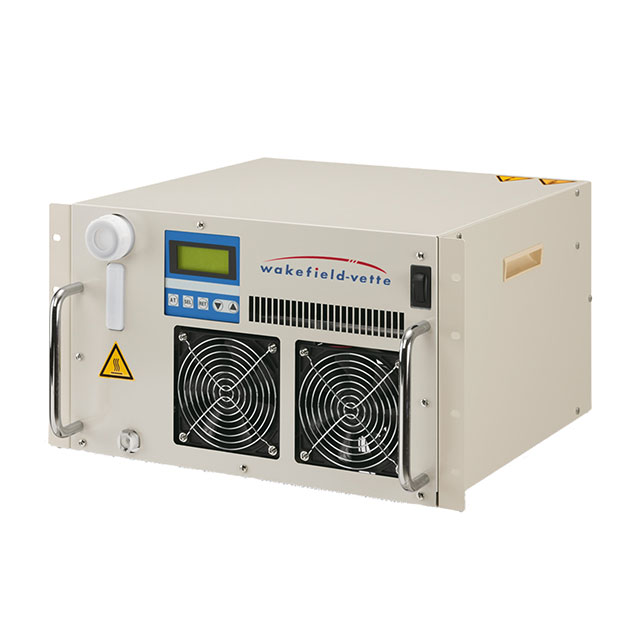

RACKMOUNT/ BENCHTOP LIQUID CHILLER 800 WATT COOLING CAPACITY

Part	Power - Cooling	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Ratings	Product Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage [Min]	Voltage [Max]	Weight	Weight	Current	Voltage	Flow Rate	Flow Rate	Fluid Capacity	Fluid Capacity	Accessory Type	For Use With/Related Products
Wakefield Thermal Solutions HPLC-RM-200	200 W	13.54 "	6.93 "	19.06 "	484 mm	176 mm	344 mm	CE UL	Active Recirculating Chiller	Temperature Control	10 °C	35 °C	100 VAC	240 VAC
Wakefield Thermal Solutions HPLC-10	1300 W	14.84 in	25.59 in	20.52 in	521 mm	650 mm	377 mm	CE UL	Active Recirculating Chiller	Auto Restart Temperature Control	5 °C	40 °C			88 lbs	40 kg	8.3 A	110 VAC 115 VAC	7 LPM	1.85 GPM	5000 ML	169.1 oz
Wakefield Thermal Solutions HPLC-RM-800	800 W	18.11 in	10.51 in	19.06 "	484 mm	267 mm	460 mm	CE UL	Active Recirculating Chiller	Temperature Control	10 °C	35 °C	100 VAC	240 VAC
Wakefield Thermal Solutions HPLC-RM-200	200 W	13.54 "	6.93 "	19.06 "	484 mm	176 mm	344 mm	CE UL	Active Recirculating Chiller	Temperature Control	10 °C	35 °C	100 VAC	240 VAC
Wakefield Thermal Solutions HPLC-BP1																							Bypass Kit	HPLC-10 HPLC-20
Wakefield Thermal Solutions HPLC-20	1300 W	14.84 in	25.59 in	20.52 in	521 mm	650 mm	377 mm	CE UL	Active Recirculating Chiller	Auto Restart Temperature Control	5 °C	40 °C	200 VAC	230 VAC	88 lbs	40 kg	5.1 A		7 LPM	1.85 GPM	5000 ML	169.1 oz
Wakefield Thermal Solutions HPLC-RM-800	800 W	18.11 in	10.51 in	19.06 "	484 mm	267 mm	460 mm	CE UL	Active Recirculating Chiller	Temperature Control	10 °C	35 °C	100 VAC	240 VAC
Wakefield Thermal Solutions HPLC-BP1																							Bypass Kit	HPLC-10 HPLC-20
Wakefield Thermal Solutions HPLC-20	1300 W	14.84 in	25.59 in	20.52 in	521 mm	650 mm	377 mm	CE UL	Active Recirculating Chiller	Auto Restart Temperature Control	5 °C	40 °C	200 VAC	230 VAC	88 lbs	40 kg	5.1 A		7 LPM	1.85 GPM	5000 ML	169.1 oz
