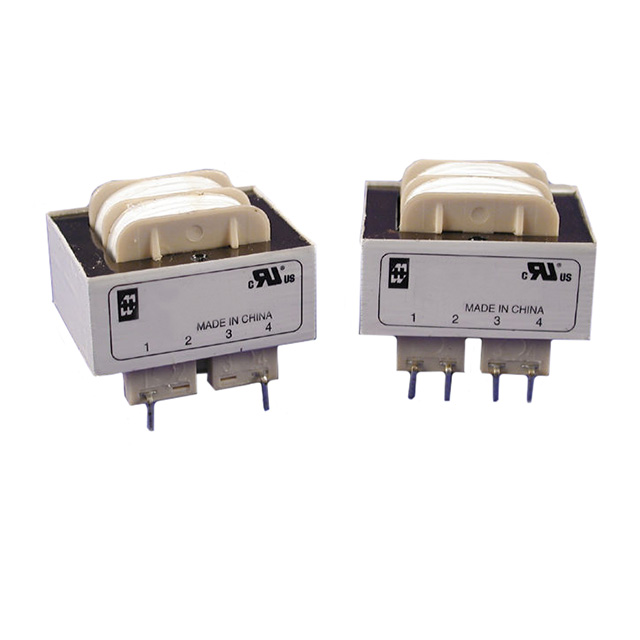

162 Series

Catalog

POWER TRANSFORMERS TRANSFORMER, LOW VOLT PCB MOUNT, LOW PROFILE, 115/230V, 12VA, 48V C.T. @ .25A

Part	Primary Winding(s)	Weight	Weight	Termination Style	Voltage - Secondary (Full Load)	Mounting Type	Power - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Isolation	Secondary Winding(s)	Type	Height - Seated (Max)	Voltage - Primary	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Weight [custom]	Weight [custom]
Hammond Manufacturing 162G48	Dual	0.7 lb	317.51 g	PC Pin	24 V 48 V	Through Hole	12 VA	39.67 mm	47.63 mm	500 mA	250 mA	2500 Vrms	Dual	Laminated Core	38.1 mm	115 V 230 V

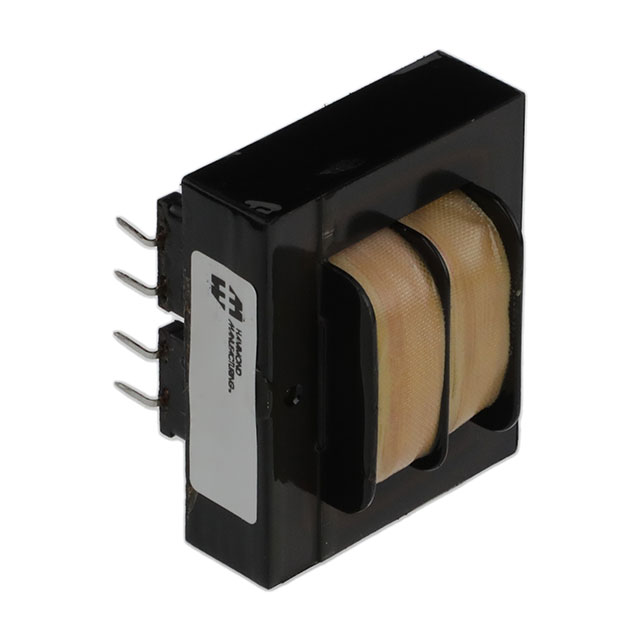

Hammond Manufacturing 162H120	Dual	0.8 lb	362.87 g	PC Pin	60 V 120 V	Through Hole	20 VA	47.63 mm	2.25 "	320 mA	160 mA	2500 Vrms	Dual	Laminated Core		115 V 230 V	36.52 mm
Hammond Manufacturing 162J48	Dual	1.1 lbs	499 g	PC Pin	24 V 48 V	Through Hole	36 VA	55.55 mm	66.68 mm			2500 Vrms	Dual	Laminated Core		115 V 230 V		39.7 mm	1.5 A 750 mA
Hammond Manufacturing 162J120	Dual	1.1 lbs	499 g	PC Pin	60 V 120 V	Through Hole	36 VA	55.55 mm	66.68 mm			2500 Vrms	Dual	Laminated Core		115 V 230 V		39.7 mm	300 mA 600 mA
Hammond Manufacturing 162F24	Dual			PC Pin		Through Hole	6 VA	33.32 mm	41.28 mm	500 mA	250 mA	2500 Vrms	Dual	Laminated Core		115 V 230 V	33.32 mm			24 V	12 V	0.44 lb	199.58 g
