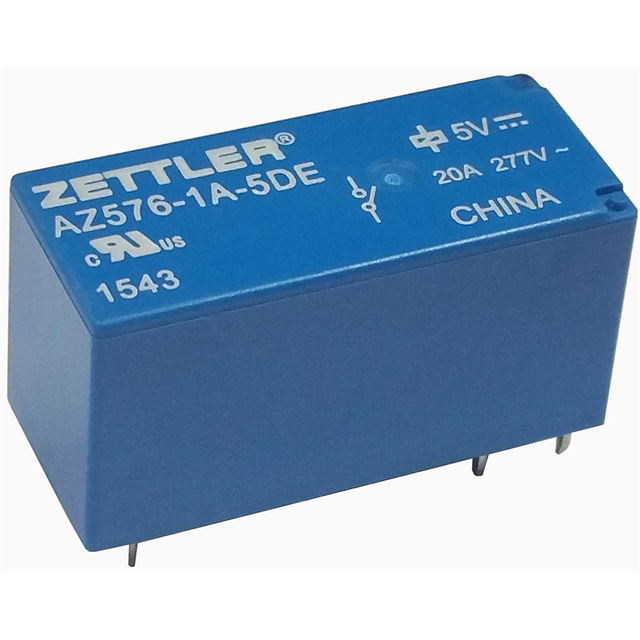

AZ576-1A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 20A 24V
| Part | Coil Resistance | Approval Agency | Coil Current | Coil Voltage | Contact Form | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Coil Insulation | Release Time | Contact Rating (Current) | Switching Voltage [Max] | Load - Max Switching | Must Operate Voltage | Coil Type | Mounting Type | Seal Rating | Contact Material | Relay Type | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 1440 Ohms | CUR TUV UL | 16.7 mA | 24 VDC | SPST-NO (1 Form A) | PC Pin | -40 C | 105 ░C | 15 ms | Class F | 8 ms | 20 A | 30 VDC 480 VAC | 510 W 5540 VA | 18 VDC | Non Latching | Through Hole | Sealed - Fully | Silver Tin Oxide (AgSnO) | General Purpose | 2.4 VDC |
American Zettler | 360 Ohms | CUR TUV UL | 33.3 mA | 12 VDC | SPST-NO (1 Form A) | PC Pin | -40 C | 105 ░C | 15 ms | Class F | 8 ms | 20 A | 30 VDC 480 VAC | 510 W 5540 VA | 9 VDC | Non Latching | Through Hole | Sealed - Fully | Silver Tin Oxide (AgSnO) | General Purpose | 1.2 VDC |
