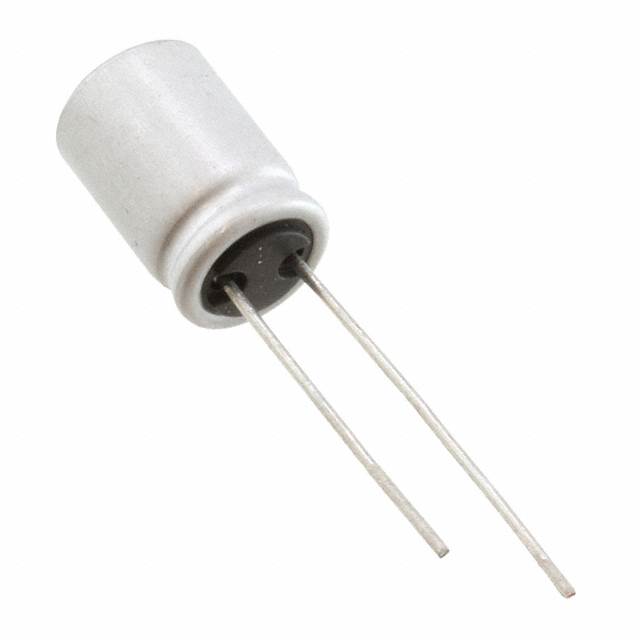

RNU Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS

Part	Ripple Current @ Low Frequency	Package / Case	Tolerance	Capacitance	Applications	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Mounting Type	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon RNU1H390MCN1
Nichicon RNU1V470MCN1
Nichicon RNU1E181MDN1PX	465 mA	Can Radial	20 %	180 µF	General Purpose	Polymer	0.512 "	13 mm	2000 Hrs	Through Hole	16 mOhm	0.138 in	3.5 mm	0.315 in	8 mm	4.65 A	25 VDC	-55 C	105 ░C
Nichicon RNU0E152MDN1KX	570 mA	Can Radial	20 %	1.5 mF	General Purpose	Polymer	0.512 "	13 mm	2000 Hrs	Through Hole	7 mOhms	0.138 in	3.5 mm	0.315 in	8 mm	5.7 A	2.5 V	-55 C	105 ░C
Nichicon RNU1J390MDN1PH	260 mA	Can Radial	20 %	39 µF	General Purpose	Polymer			2000 Hrs	Through Hole	25 mOhm	0.197 "	5 mm	0.394 in	10 mm	2.6 A	63 V	-55 C	105 ░C	14 mm	0.551 in
Nichicon RNU1C681MDN1PH	610 mA	Can Radial	20 %	680 µF	General Purpose	Polymer			2000 Hrs	Through Hole	10 mOhm	0.197 "	5 mm	0.394 in	10 mm	6.1 A	16 V	-55 C	105 ░C	14 mm	0.551 in
Nichicon RNU0G122MDN1	570 mA	Can Radial	20 %	1.2 mF	General Purpose	Polymer	0.512 "	13 mm	2000 Hrs	Through Hole	7 mOhms	0.138 in	3.5 mm	0.315 in	8 mm	5.7 A	4 V	-55 C	105 ░C
Nichicon RNU0E272MDN1	610 mA	Can Radial	20 %	2700 µF	General Purpose	Polymer			2000 Hrs	Through Hole	7 mOhms	0.197 "	5 mm	0.394 in	10 mm	6.1 A	2.5 V	-55 C	105 ░C	14 mm	0.551 in

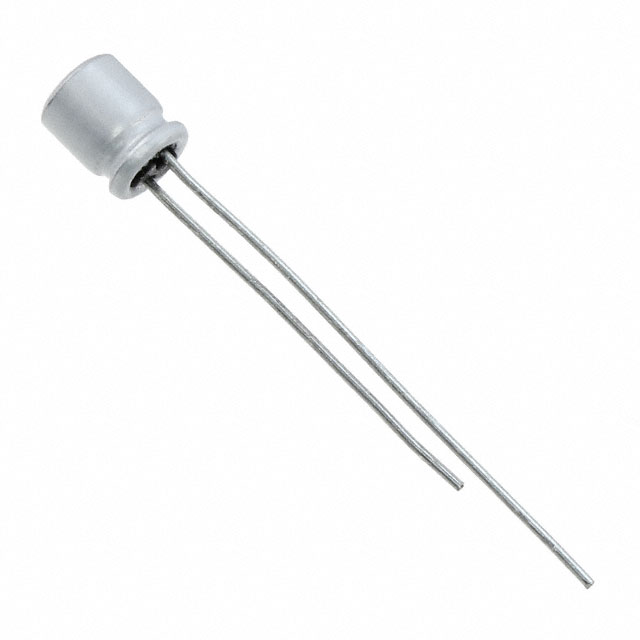

Nichicon RNU1A100MDSASQ	70 mA	Can Radial	20 %	10 µF	General Purpose	Polymer			5000 Hrs	Through Hole	220 mOhms	0.059 in	1.5 mm	0.157 in	4 mm	700 mA	10 V	-55 C	105 ░C		0.236 "	6 mm
Nichicon RNU1E221MDNASQPX	465 mA	Can Radial	20 %	220 µF	General Purpose	Polymer	0.512 "	13 mm	2000 Hrs	Through Hole	16 mOhm	0.138 in	3.5 mm	0.315 in	8 mm	4.65 A	25 VDC	-55 C	105 ░C
